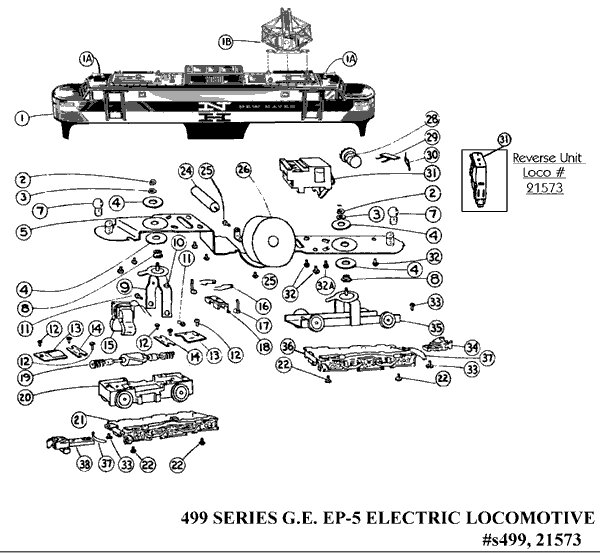

Parts for American Flyer 499 Series GE EP-5 Electric Locomotive

Diagram #	Product ID	Description	Price
NOT SHOWN:	N/A	4 CONDUCTOR CABLE	N/A
1	PA11488	HEADLIGHT LENS	$1.75
1	N/A	CABIN(# 499)	N/A
1	N/A	CABIN(# 21573)	N/A
1A	N/A	PLASTIC HORN	N/A
3	W2A28	SPRING WASHER (# 21573)	$1.75
3	W83	WASHER	$0.50		20	$4.00
4	W124	FIBRE WASHER	$0.50
4	N/A	STEEL WASHER (rear truck below chassis # 21573)	N/A
5	N/A	CHASSIS & LAMP SOCKET ASSEMBLY	N/A
6	N/A		N/A
7	PA8999	14v BULB	$1.00
9	XA13A037	YOKE ASSEMBLY	$7.50
9	PA13034	FIELD CLAMP ASSEMBLY	$5.00
10	S165	SCREW	$0.25
11	S406	SCREW	$1.50
12	S171	SCREW	$0.95		20	$10.00
13	PA11441	WORM COVER	$2.95
14	PA11453	BEARING STRAP	$3.00
15	XA13A036	FIELD ASSEMBLY	$24.95
16	PA11000R@	BRUSH SPRING (right)	$1.45
17	XA11684	BRUSH HOLDER ASSEMBLY	$4.95
17	PA11684	BRUSH	$7.99
17	PA11000L@	BRUSH SPRING (left)	$1.45
17	PA10132	BRUSH HOLDER	$1.95
18	XA11454RPX	BRUSH BRACKET ASSEMBLY	$5.99
19	N/A	ARMATURE ASSEMBLY	N/A
20	PA15281	GEAR AXLE (# 21573)	$2.50
20	PA15A218	WORM GEAR	$3.50
20	PA14A890	PULL-MOR TIRE (# 21573)	$2.95
20	XA11473	INSULATED WHEEL (# 499)	$7.99
20	PA11343@	SOLID WHEEL (# 499)	$4.95
20	PA10006	GEAR AXLE (# 499)	$2.50
20	N/A	SOLID WHEEL (# 21573)	N/A
20	N/A	PULL-MOR WHEEL (# 499)	N/A
20	N/A	PULL-MOR WHEEL (# 21573)	N/A
21	PA12A586	COLLECTOR FRAME	$2.75
21	PA11677A	PICK-UP SHOE	$5.99
21	PA11533	PICK-UP SPRING	$2.50
21	N/A	TRUCK SIDE & COLLECTOR ASSEMBLY	N/A
22	S249	SCREW	$1.25
23	N/A		N/A
24	PA14A914	CONDENSER (# 499)	$3.50		10	$20.00
25	S171	SCREW (# 499)	$0.95		20	$10.00
25	N/A	SCREW (# 499)	N/A
26	XA14A127@	SPEAKER (# 499)	N/A
26	N/A	BRACKET (# 499)	N/A
27	N/A		N/A
28	N/A	DRUM (# 499)	N/A
29	XA9612CRP	TOP FINGER UNIT (# 499)	$3.99
30	XA9612BRP	BOTTOM FINGER UNIT (# 499)	$3.99
31	XA10587E	REMOTE CONTROL UNIT (4-position # 499)	$44.99
31	N/A	REMOTE CONTROL UNIT (2-position # 21573)	N/A
32	N/A	SCREW	N/A
32A	S230B	SCREW (for R.C. unit # 499)	$0.25
32A	N/A	SCREW (for R.C. unit # 21573)	N/A
34	XA12A047@	KNUCKLE COUPLER	$4.95		25	$100.00
35	PA15226	PLAIN AXLE (# 21573)	$1.50
35	XA11598A	WHEEL & CHASSIS ASSEMBLY (# 499)	$24.99
35	XA11473	INSULATED WHEEL (# 499)	$7.99
35	PA11343@	SOLID WHEEL (# 499)	$4.95
35	PA10005	PLAIN AXLE (# 499)	$2.50
35	N/A	WHEEL & CHASSIS ASSEMBLY (# 21573)	N/A
35	N/A	SOLID WHEEL (# 21573)	N/A
35	XA14870	INSULATED WHEEL (# 21573)	N/A
36	PA12A586	COLLECTOR FRAME	$2.75
36	PA11677A	PICK-UP SHOE	$5.99
36	PA11533	PICK-UP SPRING	$2.50
36	N/A	TRUCK SIDE & COLLECTOR ASSEMBLY	N/A
37	PA12355A	LEAF SPRING	$1.25
38	XA12A047@	KNUCKLE COUPLER	$4.95		25	$100.00
38	N/A	COUPLER & ARM ASSEMBLY	N/A
38	N/A	COUPLER EXTENSION ARM	N/A
