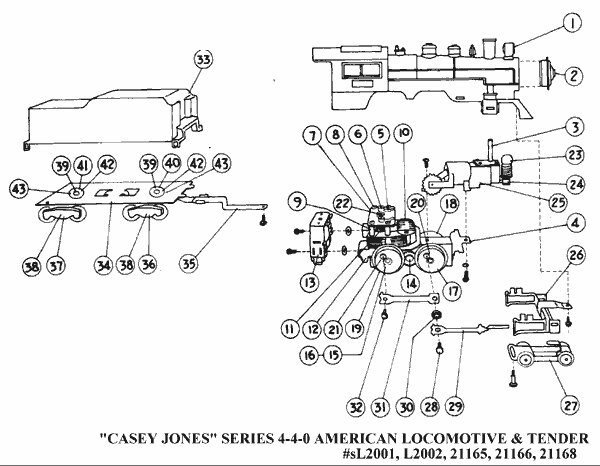

Parts for American Flyer "Casey Jones" Series 4-4-0 American Locomotive

Diagram #	Product ID	Description	Price
1	XA30N165	BOILER ASSEMBLY (# 21165)	$12.00		10	$60.00
1	PA30A163	PLUG (NOT USED some # 21165)	$0.95		100	$50.00
1	XA17N102	BOILER ASSEMBLY (#L-2002)	$12.00		10	$60.00
1	XA17N101	BOILER ASSEMBLY (#L-2001)	$12.00		10	$60.00
1	XA17N100	BOILER ASSEMBLY (# 21166)	$12.00		10	$60.00
1	N/A	BOILER ASSEMBLY (# 21168)	N/A
1	N/A	HEADLIGHT LENS (# 21168 ONLY)	N/A
2	PA30C048	BOILER FRONT	$1.95
4	XA30C047	MOTOR & CHASSIS ASSEMBLY	$19.95		5	$50.00
4	N/A	MOTOR & CHASSIS ASSEMBLY (# 21168 ONLY)	N/A
5	PA16380	BRUSH SPRING	$1.00
6	PA30A032	BRUSH	$0.95
7	PA30A033	BRUSH PLATE ASSEMBLY	$3.00
8	S24	SCREW	$0.50
8	S20	SCREW (# 21168 ONLY)	$0.25
9	N/A	SPACER	N/A
10	XA30A167	FIELD ASSEMBLY	$7.00
10	N/A	FIELD ASSEMBLY (# 21168 ONLY)	N/A
11	XA30168	ARMATURE ASSEMBLY	$9.00
11	XA30B044	ARMATURE ASSEMBLY (# 21168 ONLY)	$12.00
11	P325A	WASHER	$0.25
12	XA30N062	CHASSIS, WHEEL, AXLE & GEAR ASSEMBLY	$5.95		10	$40.00
12	PA15226	PLAIN AXLE	$1.50
12	PA15225	WORM GEAR AXLE	$3.50
13	N/A	REMOTE CONTROL ASSEMBLY (#s 21165, 21166 & 21168)	N/A
14	XA30N061	CHASSIS & IDLER GEAR ASSEMBLY	$3.50
15	XA30N064	PULL-MOR DRIVE WHEEL w/GEAR (# 21168 ONLY)	$1.50
15	PA30A042	DRIVE WHEEL w/GEAR	$1.50
16	PA14867B	FLANGED WHEEL w/STUD	$1.50
17	XA30N064	PULL-MOR DRIVE WHEEL W/GEAR	$1.50
17	PA30A042	DRIVE WHEEL w/GEAR (#s L-2001 & 21168)	$1.50
17	XA14A913A	PULL-MOR WHEEL (# 21168 ONLY)	$3.50		10	$20.00
18	XA14A913A	PULL-MOR WHEEL	$3.50		10	$20.00
19	PA14867B	FLANGED WHEEL w/STUD (#s L-2001 & 21168)	$1.50
19	N/A	PULL-MOR TIRE (NOT USED # L-2001)	N/A
20	PA30A039	WHEEL BEARING	$2.95
21	PA30025	HELICAL GEAR	$2.00
22	PA30A021	MOTOR BEARING	$1.95		10	$12.00
23	PA8999	14v BULB (# 21168 ONLY)	$1.00
24	XA16500	HEADLIGHT CLIP ASSEMBLY (# 21168 ONLY)	$1.50
25	N/A	SMOKE UNIT ASSEMBLY (# 21168 ONLY)	N/A
26	PA30024	SIDE ROD GUIDE	$2.00
26	XA16537	CROSSHEAD GUIDE & BRACKET (# 21168 ONLY)	$3.00
27	XA30035	PILOT TRUCK ASSEMBLY	$10.00
28	N/A	PISTON ROD SCREW	N/A
29	PA30A017	PISTON ROD	$1.25
29	N/A	MAIN ROD (# 21168 ONLY)	N/A
30	PA7237A	PISTON ROD SPACER (# 21168 ONLY)	$1.25
31	PA30A115	SIDE ROD (# 21168 ONLY)	$1.95
32	S5A37	ECCENTRIC CRANK SCREW (# 21168 ONLY)	$1.25		20	$15.00
33	XA12B078Q@	TENDER BODY ("GAME TRAIN" # L-2001)	$12.00		10	$60.00
33	XA12B078P	TENDER BODY ("CHICAGO, MILWAUKEE, St. PAUL & PACIFIC" # 21165)	$12.00		10	$60.00
33	XA12B078O@	TENDER BODY (white letters "BURLINGTON ROUTE" #s L-2002 & 21166)	$12.00		10	$60.00
33	XA12B078N@	TENDER BODY (black letters "BURLINGTON ROUTE" #s L-2002 & 21166)	$12.00		10	$60.00
33	XA12B078M@	TENDER BODY ("SOUTHERN" # 21168)	$10.00		10	$60.00
33	S222	SCREW	$0.30
33	N/A	TENDER BODY ("ERIE" # 21165)	N/A
34	N/A	TENDER CHASSIS	N/A
35	PA30A053	DRAWBAR EXTENSION	$1.50
36	XA10238B	WHEEL & AXLE ASSEMBLY	$4.00
36	PA10238	AXLE	$0.35
36	PA10140C@	METAL WHEEL	$2.50
36	PA9990D	PLASTIC WHEEL	$0.50
36	XA30A051	FRONT TRUCK & WHEEL ASSEMBLY (pikemaster)	N/A
37	XA30A050	REAR TRUCK & WHEEL ASSEMBLY (pikemaster)	$9.95
37	XA10238B	WHEEL & AXLE ASSEMBLY	$4.00
37	PA10238	AXLE	$0.35
37	PA10140C@	METAL WHEEL	$2.50
37	PA9990D	PLASTIC WHEEL	$0.50
38	PA30164	CONTACT SPRING	$1.00
39	N/A	EYELET	N/A
40	W6A	WASHER	$0.50
41	W6B	WASHER	$0.50
42	PA30020	FIBRE SLEEVE	$1.50
43	W243	FIBRE WASHER	$0.50
