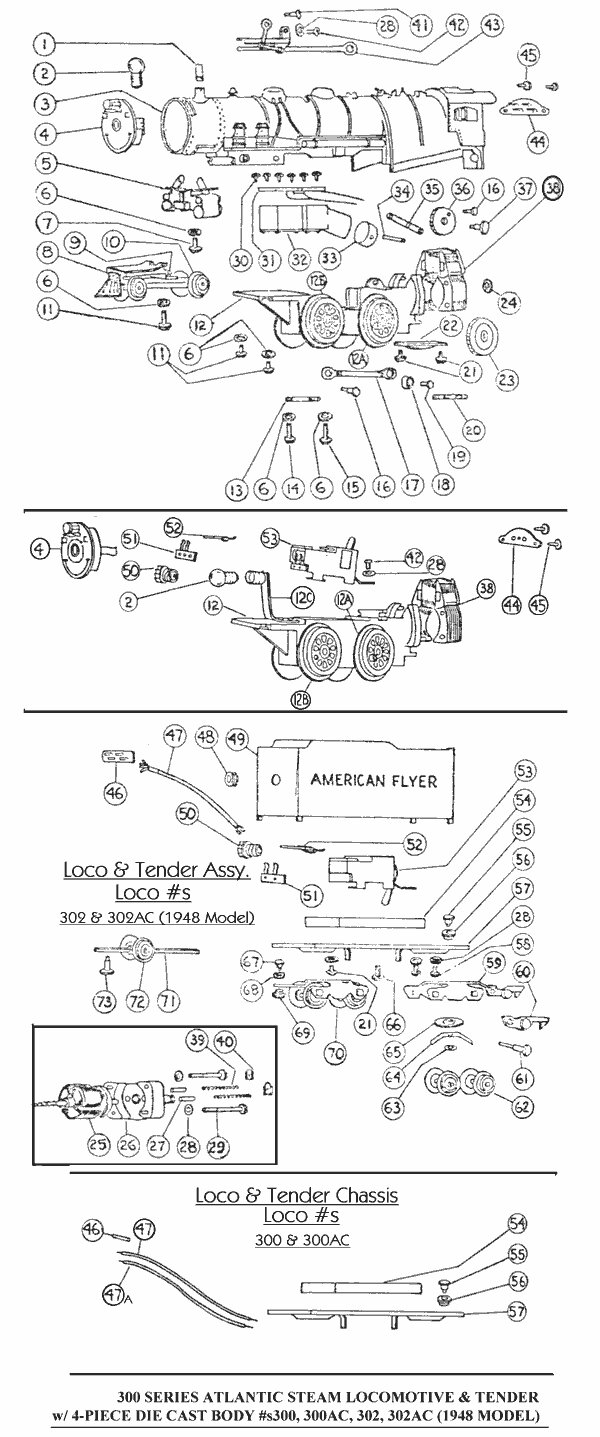

| Diagram # | Product ID | Description | Price | ||||
|---|---|---|---|---|---|---|---|
| 1 | PA10536@ | SMOKE STACK (#302 & 302AC) | $4.99 | ||||
| 2 | PA8999 | 14v BULB | $1.00 | ||||
| 3 | PA8892L@ | REAR CAB HANDRAIL (left) | $1.00 | ||||
| 3 | PA8892R@ | REAR CAB HANDRAIL (right) | $1.00 | ||||
| 3 | P1247B | HANDRAIL COTTER PIN (black) | $0.25 | ||||
| 3 | N/A | BOILER ASSEMBLY (#302 & 302AC) | N/A | ||||
| 3 | N/A | BOILER ASSEMBLY (#300 & 300AC) | N/A | ||||
| 3 | N/A | BOILER -to- PILOT HANDRAIL (right) | N/A | ||||
| 3 | N/A | BOILER -to- PILOT HANDRAIL (left) | N/A | ||||
| 4 | XA9444A@ | BOILER FRONT ASSEMBLY w/LAMP BRACKET (#302 & 302AC) | N/A | ||||
| 4 | N/A | BOILER FRONT ASSEMBLY (#300 & 300AC) | N/A | ||||
| 5 | PA10076@ | CYLINDER & STEAMCHEST | $5.00 | ||||
| 6 | PA3769 | LOCKWASHER | $0.50 | ||||
| 7 | N/A | SCREW | N/A | ||||
| 7 | N/A | PILOT & FRONT TRUCK ASSEMBLY | N/A | ||||
| 8 | PA9446@ | PILOT | $19.99 | ||||
| 9 | PA4360 | RIVET | $0.35 | ||||
| 10 | XA10081@ | FRONT TRUCK ASSEMBLY | $6.99 | ||||
| 10 | PA9990 | FRONT TRUCK WHEEL ONLY | $0.50 | ||||
| 11 | S14 | SCREW | $0.25 | ||||
| 12 | N/A | CHASSIS ASSEMBLY (#302 & 302AC) | N/A | ||||
| 12 | N/A | CHASSIS ASSEMBLY (#300 & 300AC) | N/A | ||||
| 12A | N/A | FLANGED WHEEL ASSEMBLY w/STUD | N/A | ||||
| 12B | N/A | FLANGED WHEEL ASSEMBLY w/TAPPED HOLE | N/A | ||||
| 12C | N/A | LAMP BRACKET ASSEMBLY (#300 & 300AC) | N/A | ||||
| 13 | PA10005 | PLAIN AXLE | $2.50 | ||||
| 14 | S18 | SCREW | $0.25 | ||||
| 15 | S16-C | SCREW | $0.25 | ||||
| 16 | PA7421 | SIDE ROD SCREW | $2.50 | 25 | $30.00 | ||
| 17 | PA9452 | SIDE ROD | $1.95 | 20 | $20.00 | ||
| 18 | PA7237N | SPACER | $1.75 | ||||
| 20 | PA10006 | WORM GEAR AXLE | $2.50 | ||||
| 21 | N/A | SCREW | N/A | ||||
| 22 | N/A | MOTOR COVER PLATE | N/A | ||||
| 23 | PA10672 | WORM GEAR (motor) | $6.99 | ||||
| 24 | N/A | WASHER | N/A | ||||
| 25 | XA11077 | ARMATURE ASSEMBLY | $29.95 | ||||
| 26 | XA9565A | BRUSH BRACKET ASSEMBLY | $14.99 | ||||
| 27 | PA9603 | BRUSH | $2.95 | ||||
| 28 | W46 | WASHER | $0.25 | ||||
| 29 | N/A | SCREW | N/A | ||||
| 29 | N/A | CHASSIS SMOKE BOX ASSEMBLY | N/A | ||||
| 31 | XA10523 | HEATING ELEMENT & TOP PLATE ASSEMBLY | $11.00 | ||||
| 32 | N/A | CHASSIS SMOKE BOX | N/A | ||||
| 32 | N/A | PISTON & PISTON LEVER ASSEMBLY | N/A | ||||
| 34 | PA10520 | PISTON PIN | $0.95 | ||||
| 35 | PA10517 | PISTON LEVER | $1.50 | ||||
| 36 | PA10671B | WORM GEAR (smoke drive) | $3.00 | 10 | $20.00 | ||
| 38 | N/A | MAGNET ASSEMBLY | N/A | ||||
| 39 | PA10757A | BRUSH SPRING | $1.99 | ||||
| 40 | PA10754 | BRUSH CAP | $2.99 | ||||
| 41 | PA9288 | SCREW | $0.95 | ||||
| 42 | N/A | SCREW | N/A | ||||
| 43 | N/A | CROSSHEAD ASSEMBLY (right) | N/A | ||||
| 43 | N/A | CROSSHEAD ASSEMBLY (left) | N/A | ||||
| 44 | XA10662A | JACK PANEL (#302 & 302AC) | $11.99 | ||||
| 44 | XA10287@ | JACK PANEL (#300 & 300AC) | $9.50 | ||||
| 45 | N/A | SCREW | N/A | ||||
| 46 | XA10663@ | MALE PLUG (#302 & 302AC) | $5.99 | ||||
| 46 | N/A | MALE PLUG (#300 & 300AC) | N/A | ||||
| 47 | PA10511 | 4 CONDUCTOR CABLE (#302 & 302AC) | $6.00 | ||||
| 47 | N/A | 5" WIRE LEAD (#300 & 300AC) | N/A | ||||
| 47 | N/A | 9" WIRE LEAD (#300 & 300AC) | N/A | ||||
| 48 | N/A | RUBBER GROMMET | N/A | ||||
| 49 | N/A | TENDER BODY (metal) | N/A | ||||
| 50 | N/A | DRUM | N/A | ||||
| 51 | XA9612BRP | BOTTOM FINGER UNIT | $3.99 | ||||
| 52 | XA9612CRP | TOP FINGER UNIT | $3.99 | ||||
| 53 | XA10587E | REMOTE CONTROL UNIT (#302 & 302AC) | $44.99 | ||||
| 53 | XA10587B | REMOTE CONTROL UNIT (#300 & 300AC) | $39.99 | ||||
| 54 | N/A | TENDER WEIGHT | N/A | ||||
| 55 | PA10235A@ | TRUCK RIVET | $1.95 | 25 | $35.00 | ||
| 56 | PA10209 | INSULATING BUSHING | $1.25 | 25 | $20.00 | ||
| 57 | N/A | TENDER CHASSIS (for metal tender) | N/A | ||||
| 58 | S0 | SCREW (#302 & 302AC) | $0.95 | 20 | $10.00 | ||
| 59 | N/A | REAR TRUCK ASSEMBLY w/WHEELS | N/A | ||||
| 60 | PA10692A@ | COUPLER WEIGHT ONLY(brass) | $1.00 | ||||
| 60 | N/A | PA10692@ COUPLER WEIGHT ONLY(black) | N/A | ||||
| 61 | PA10467 | COUPLER PIN | $0.95 | ||||
| 62 | PA10140S@ | METAL WHEEL | $2.50 | ||||
| 62 | XA10140 | WHEEL & AXLE ASSEMBLY | $4.00 | ||||
| 62 | PA9990 | PLASTIC WHEEL | $0.50 | ||||
| 63 | N/A | TIN WASHER | N/A | ||||
| 64 | PA10207 | CONTACT SPRING | $2.80 | ||||
| 65 | PA8715B | INSULATING WASHER | N/A | ||||
| 66 | S184 | SCREW | $0.25 | ||||
| 66 | N/A | TRUCK &COUPLER ASSEMBLY | N/A | ||||
| 67 | PA10751 | STUD | $1.25 | ||||
| 68 | PA1067A | WASHER | $0.25 | ||||
| 70 | N/A | FRONT TRUCK ASSEMBLY w/WHEELS | N/A | ||||
| 71 | XA10749 | COUPLER & YOKE ASSEMBLY | $11.99 | ||||
| 72 | PA10019 | REAR TRUCK WHEEL ONLY | $1.99 | 10 | $10.00 | ||
| 73 | PA4939 | TRUCK STUD | $0.95 | 20 | $10.00 |
