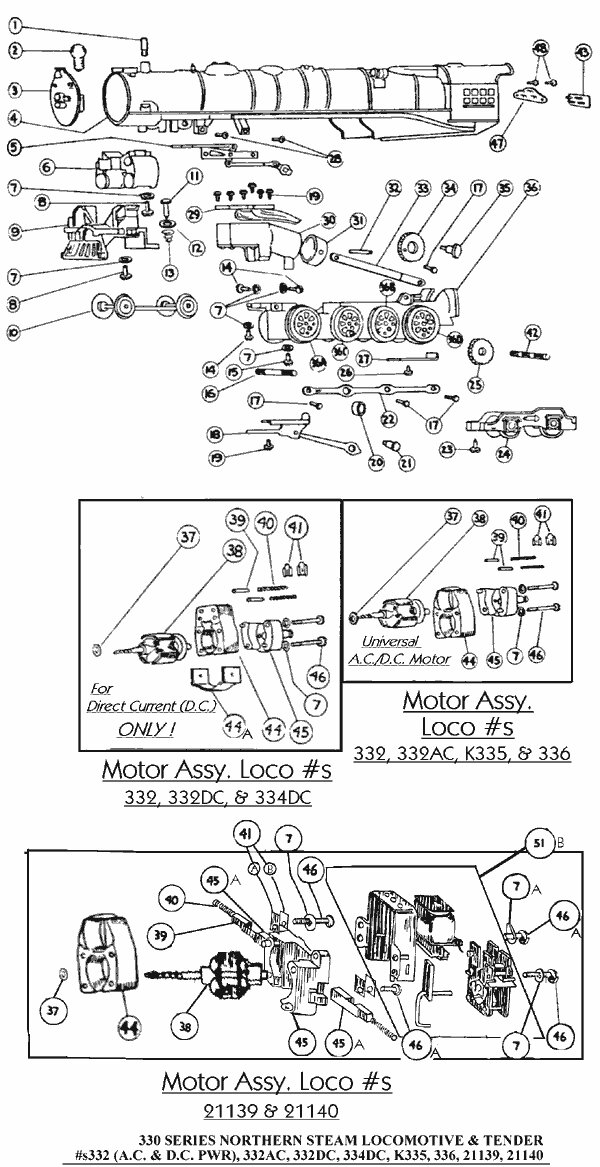

| Diagram # | Product ID | Description | Price | ||||
|---|---|---|---|---|---|---|---|
| 1 | PA12A190 | SMOKE STACK (#sK335, 336, 21139 & 21140) | $1.99 | ||||
| 1 | PA10536@ | SMOKE STACK (#s 332, 332AC, 332DC & 334DC) | $4.99 | ||||
| 2 | PA8999 | 14v BULB | $1.00 | ||||
| 3 | PA10542 | HEADLIGHT LENS | $1.25 | 20 | $15.00 | ||
| 4 | PA9579A | MOTOR MOUNT | $2.95 | ||||
| 4 | 8896336@ | NUMBER BOARD (# 336 ONLY) | $4.95 | ||||
| 4 | 8896334@ | NUMBER BOARD (# 334DC ONLY) | $4.95 | ||||
| 4 | 8896W332@ | NUMBER BOARD (#s 332AC & 332DC) | $4.95 | ||||
| 4 | PA8892L@ | REAR CAB HANDRAIL (left) | $1.00 | ||||
| 4 | PA8892R@ | REAR CAB HANDRAIL (right) | $1.00 | ||||
| 4 | XA8877 | DRAWBAR BRACKET (#s 332, 332AC, 332DC, 334DC & K335) | $7.99 | ||||
| 4 | PA8668@ | GENERATOR | $4.99 | ||||
| 4 | P1247B | HANDRAIL COTTER PIN (black) | $0.25 | ||||
| 4 | N/A | BOILER ASSEMBLY | N/A | ||||
| 4 | N/A | DRAWBAR BRACKET (#s 336 ONLY) | N/A | ||||
| 5 | N/A | VALVE LINK ASSEMBLY (left) | N/A | ||||
| 7 | PA3769 | LOCKWASHER | $0.50 | ||||
| 8 | N/A | SCREW | N/A | ||||
| 8 | N/A | PILOT & FRONT TRUCK ASSEMBLY | N/A | ||||
| 9 | PA8959@ | PILOT | $8,963.00 | ||||
| 10 | XA10012 | FRONT TRUCK | $9.50 | ||||
| 10 | PA9990D | FRONT TRUCK WHEEL ONLY | $0.50 | ||||
| 10 | N/A | AXLE | N/A | ||||
| 11 | PA13404 | FRONT TRUCK STUD (#s K335, 336, 21139 & 21140) | $1.50 | ||||
| 11 | PA10707 | FRONT TRUCK STUD (#s 332, 332AC, 332DC & 334DC) | $1.25 | ||||
| 12 | W6 | FRONT TRUCK WASHER | $0.50 | ||||
| 13 | PA8887 | FRONT TRUCK SPRING | $1.50 | ||||
| 14 | S46 | SCREW | $0.95 | 20 | $10.00 | ||
| 15 | S18 | SCREW | $0.25 | ||||
| 16 | PA15226 | PLAIN AXLE (#s 21139 & 21140) | $1.50 | ||||
| 16 | PA10005 | PLAIN AXLE | $2.50 | ||||
| 17 | PA7421 | SCREW | $2.50 | 25 | $30.00 | ||
| 18 | N/A | CROSSHEAD ASSEMBLY (right) | N/A | ||||
| 18 | N/A | CROSSHEAD ASSEMBLY (left) | N/A | ||||
| 20 | PA7237N | PISTON ROD SPACER | $1.75 | ||||
| 21 | S5A37 | ECCENTRIC CRANK SCREW ( #s 21139 & 21140) | $1.25 | 20 | $15.00 | ||
| 22 | PA8994A@ | SIDE ROD | $6.00 | ||||
| 23 | PA4939 | STUD (#s 21139 & 21140) | $0.95 | 20 | $10.00 | ||
| 24 | XA10002 | TRAILING TRUCK ASSEMBLY | $39.99 | ||||
| 25 | PA10672 | WORM GEAR (motor) | $6.99 | ||||
| 26 | PA10019 | REAR TRUCK WHEEL ONLY(large) | $1.99 | 10 | $10.00 | ||
| 27 | PA10017 | GREASE PAN | $3.00 | 10 | $20.00 | ||
| 27 | PA9990 | REAR TRUCK WHEEL ONLY(small) | $0.50 | ||||
| 28 | S171 | SCREW | $0.95 | 20 | $10.00 | ||
| 28 | N/A | CHASSIS SMOKE BOX ASSEMBLY | N/A | ||||
| 28 | N/A | CHASSIS SMOKE BOX ASSEMBLY ( #s 21139 & 21140) | N/A | ||||
| 29 | XA14208A | HEATING ELEMENT & TOP PLATE ASSY. ( #s 21139 & 21140) | $9.95 | ||||
| 29 | XA10523 | HEATING ELEMENT & TOP PLATE ASSY. | $11.00 | ||||
| 30 | N/A | CHASSIS SMOKE BOX | N/A | ||||
| 30 | N/A | CHASSIS SMOKE BOX ( #s 21139 & 21140) | N/A | ||||
| 30 | N/A | SEPARATOR ( #s 21139 & 21140) | N/A | ||||
| 30 | N/A | PISTON & PISTON LEVER ASSEMBLY | N/A | ||||
| 31 | PA10518B | PISTON | $8.99 | ||||
| 32 | PA10520 | PISTON PIN | $0.95 | ||||
| 34 | PA10671B | WORM GEAR (smoke drive) | $3.00 | 10 | $20.00 | ||
| 36 | N/A | CHASSIS ASSEMBLY | N/A | ||||
| 36A | N/A | FLANGED DRIVE WHEEL | N/A | ||||
| 36B | N/A | FLANGELESS DRIVE WHEEL w/HOLE | N/A | ||||
| 36C | XA10010A3 | FLANGELESS DRIVE WHEEL w/STUD | $4.00 | ||||
| 36D | N/A | PULL-MOR WHEEL ASSEMBLY (#s 336, 21139 & 21140) | N/A | ||||
| 37 | N/A | ARMATURE SPACER | N/A | ||||
| 38 | XA11077 | ARMATURE ASSEMBLY (small #s 332 (A.C. MOTOR), 332AC, K335 & 336) | $29.95 | ||||
| 38 | W192 | ARMATURE SPACER (rear #s 21139 & 21140) | $0.50 | ||||
| 38 | N/A | ARMATURE ASSEMBLY D.C.(#s 332 (D.C. MOTOR), 332DC & 334DC) | N/A | ||||
| 38 | N/A | ARMATURE ASSEMBLY (large # 336 ONLY) | N/A | ||||
| 38 | N/A | ARMATURE ASSEMBLY (drum type #s 21139 & 21140) | N/A | ||||
| 39 | PA13128 | BRUSH ( #s 21139 & 21140) | $3.95 | 20 | $50.00 | ||
| 39 | PA10778 | BRUSH D.C. (#s 332(D.C. MOTOR), 332DC & 334DC) | $0.75 | ||||
| 39 | PA9603 | BRUSH ( #s 332(A.C. MOTOR), 332AC, K335 & 336) | $2.95 | ||||
| 40 | PA13A130 | BRUSH SPRING ( #s 21139 & 21140) | $1.95 | ||||
| 40 | PA10757A | BRUSH SPRING | $1.99 | ||||
| 41 | PA15A044 | BRUSH TUBE COVER BRACE ( #s 21139 & 21140) | $0.75 | ||||
| 41 | PA13A129 | BRUSH TUBE COVER ( #s 21139 & 21140) | $0.50 | ||||
| 41 | PA10754 | BRUSH CAP | $2.99 | ||||
| 42 | PA15281 | WORM GEAR AXLE ( #s 21139 & 21140) | $2.50 | ||||
| 42 | PA10006 | WORM GEAR AXLE | $2.50 | ||||
| 43 | XA10663@ | MALE PLUG (#s 332 (A.C. MOTOR), 332AC, K335 & 336) | $5.99 | ||||
| 43 | N/A | MALE PLUG (#s 332 (D.C. MOTOR), 332DC & 334DC) | N/A | ||||
| 44 | N/A | MAGNET ASSEMBLY D.C. (#s 332 (D.C. MOTOR), 332DC & 334DC) | N/A | ||||
| 44 | N/A | MAGNET COVER (#s 332 (D.C. MOTOR), 332DC & 334DC) | N/A | ||||
| 44 | N/A | MAGNET ASSEMBLY (small #s 332 (A.C. MOTOR), 332AC, K335 & 336) | N/A | ||||
| 44 | N/A | MAGNET ASSEMBLY (large #s 336, 21139 & 21140) | N/A | ||||
| 45 | PA13A131 | BRUSH TUBE ( #s 21139 & 21140) | $1.50 | 25 | $25.00 | ||
| 45 | XA9565A | BRUSH BRACKET ASSEMBLY | $14.99 | ||||
| 45 | N/A | MOTOR BRUSH MOUNTING PLATE ASSEMBLY ( #s 21139 & 21140) | N/A | ||||
| 46 | S3A78 | SCREW (# 336 ONLY) | $0.50 | ||||
| 46 | S33 | SCREW ( #s 21139 & 21140) | $0.25 | ||||
| 46 | S29 | SCREW ( #s 21139 & 21140) | $0.50 | ||||
| 46 | N/A | SCREW ( #s 332, 332AC, 332DC, 334DC, K355 & 336) | N/A | ||||
| 47 | XA10662A | JACK PANEL (#s 332 (A.C. MOTOR), 332AC, K335 & 336) | $11.99 | ||||
| 47 | XA10287@ | JACK PANEL (#s 332 (D.C. MOTOR), 332DC & 334DC) | $9.50 | ||||
| 48 | S230B | SCREW (#s 332, 332AC, 332DC, 334DC, K335 & 336) | $0.25 | ||||
| 49 | PA10511A | 4 CONDUCTOR CABLE (#s 332 (A.C. MOTOR), 332AC, K335 & 336) | $6.00 | ||||
| 49 | N/A | 5.5" WIRE LEAD (#s 332 (D.C. MOTOR), 332DC & 334DC) | N/A | ||||
| 49 | N/A | 10" WIRE LEAD (#s 332 (D.C. MOTOR), 332DC & 334DC) | N/A | ||||
| 49 | N/A | 4 CONDUCTOR CABLE (plastic some # 336 ONLY) | N/A | ||||
| 49 | N/A | 10.5" WIRE LEAD (#s K335 & 336 ONLY) | N/A | ||||
| 50 | PA8920L@ | TENDER REAR HANDRAIL (left) | $1.99 | ||||
| 50 | PA8914@ | TENDER FRONT | $15.00 | ||||
| 50 | N/A | TENDER TANK & END CAP ASSEMBLY (die-cast) | N/A | ||||
| 50 | N/A | 14A843-RP TENDER TANK & END CAP ASSEMBLY (plastic #s 21139 & 21140) | N/A | ||||
| 50 | N/A | TENDER DECK HANDRAIL | N/A | ||||
| 51 | XA10587E | REMOTE CONTROL UNIT (4-position) | $44.99 | ||||
| 51 | N/A | REMOTE CONTROL UNIT (2-position #s 21139 & 21140) | N/A | ||||
| 52 | XA9612CRP | TOP FINGER UNIT ( NOT USED #s 21139 & 21140) | $3.99 | ||||
| 53 | XA9612BRP | BOTTOM FINGER UNIT ( NOT USED #s 21139 & 21140) | $3.99 | ||||
| 54 | N/A | DRUM ( NOT USED #s 21139 & 21140) | N/A | ||||
| 55 | PA9988 | TRUCK RIVET | $1.00 | 25 | $25.00 | ||
| 56 | PA10240P@ | INSULATING BUSHING | $1.25 | 20 | $20.00 | ||
| 57 | N/A | TENDER CHASSIS | N/A | ||||
| 58 | PA8715B | INSULATING WASHER | N/A | ||||
| 59 | N/A | SCREW | N/A | ||||
| 60 | N/A | REAR TRUCK ASSEMBLY w/WHEELS ( #s 332, 332AC, 332DC & 334DC) | N/A | ||||
| 61 | N/A | FRONT TRUCK ASSEMBLY W/WHEELS (#s 332, 332AC & 332DC) | N/A | ||||
| 62 | XA10238B | WHEEL & AXLE ASSEMBLY | $4.00 | ||||
| 62 | PA10238 | AXLE | $0.35 | ||||
| 62 | PA10140S@ | METAL WHEEL | $2.50 | ||||
| 62 | PA9990 | PLASTIC WHEEL | $0.50 | ||||
| 62 | N/A | FRONT TRUCK ASSEMBLY W/WHEELS (#s 334DC, K335 & 336) | N/A | ||||
| 63 | XA10238A | WHEEL & AXLE ASSEMBLY (center axle #s 332, 332AC, 332DC & some 336) | $1.50 | ||||
| 63 | PA10238 | AXLE | $0.35 | ||||
| 63 | PA9990 | PLASTIC WHEEL | $0.50 | ||||
| 63 | N/A | FRONT TRUCK ASSEMBLY W/WHEELS (#s 21139 & 21140) | N/A | ||||
| 64 | PA10241 | CONTACT SPRING | $3.50 | ||||
| 65 | PA10239@ | COUPLER | $2.50 | ||||
| 65 | PA4652 | RIVET | $0.75 | ||||
| 65 | N/A | COUPLER (#s 21139 & 21140) | N/A | ||||
| 66 | PA10692A@ | COUPLER WEIGHT ONLY (brass # 332) | $1.00 | ||||
| 66 | PA10692@ | COUPLER WEIGHT ONLY (black #s 332, 332AC, 332DC & 324DC) | $0.75 | ||||
| 67 | PA10467 | COUPLER PIN ( #s 332, 332AC, 332DC & 324DC) | $0.95 | ||||
| 68 | S230B | SCREW (# 21139) | $0.25 | ||||
| 68 | S171 | SCREW (# 21139) | $0.95 | 20 | $10.00 | ||
| 68 | N/A | SPEAKER (# 334DC ONLY) | N/A | ||||
| 68 | XA11710@ | SPEAKER (#s K335 & 336) | N/A | ||||
| 68 | N/A | BRACKET (# 21139) | N/A | ||||
| 69 | PA14A914 | CAPACITOR (# 21139) | $3.50 | 10 | $20.00 | ||
| 69 | PA11A991 | CONDENSER (#s K335 & 336) | $3.50 | 10 | $20.00 | ||
| 69 | PA11365 | CONDENSER (# 334DC ONLY) | $3.95 | ||||
| 70 | PA11685 | RESISTOR (#s K335, 336 & 21139) | $2.50 | ||||
| 70A | N/A | RECEIVER INSULATION (#s K335 ONLY) | N/A | ||||
| 71 | N/A | RUBBER WASHER (#s K335 ONLY) | N/A | ||||
| 72 | PA6173 | SOLDER TERMINAL (#s K335 ONLY) | $0.25 | ||||
| 73 | N/A | CONTACT STRIP (#s K335 ONLY) | N/A | ||||
| 74 | S50A | SCREW (# 334DC ONLY) | $0.25 | ||||
| 74 | N/A | NUT (#s K335 & 336) | N/A | ||||
| 74 | N/A | WASHER (# 336 ONLY) | N/A | ||||
| 75 | N/A | REAR TRUCK ASSEMBLY w/WHEELS ( #s K335, 336, 21139 & 21140) | N/A | ||||
| 76 | PA12A586 | COLLECTOR FRAME ( #s K335, 336, 21139 & 21140) | $2.75 | ||||
| 76 | XA12A047@ | KNUCKLE COUPLER ( #s K335, 336, 21139 & 21140) | $4.95 | ||||
| 77 | PA11533 | COLLECTOR SPRING ( #s K335, 336, 21139 & 21140) | $2.50 | ||||
| 77 | S0 | SCREW ( NOT USED #s 21139 & 21140) | $0.95 | 20 | $10.00 | ||
| 78 | PA11677A | COLLECTOR SHOE ( #s K335, 336, 21139 & 21140) | $4.95 | ||||
| 78 | W46 | LOCKWASHER ( NOT USED #s 21139 & 21140) | $0.25 |
