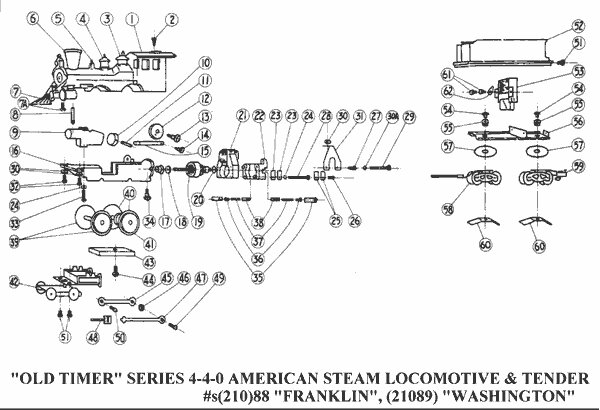

Diagram # | Product ID | Description | Price | ||||
---|---|---|---|---|---|---|---|
1 | P1247S | HANDRAIL COTTER PIN | $0.25 | ||||
1 | N/A | BOILER ASSEMBLY (# 21088) | N/A | ||||
1 | N/A | BOILER ASSEMBLY (# 21089) | N/A | ||||
2 | N/A | SCREW | N/A | ||||
3 | N/A | DOME ASSEMBLY | N/A | ||||
4 | N/A | SAND BOX ASSEMBLY | N/A | ||||
7 | N/A | PILOT-to-BOILER HANDRAIL | N/A | ||||
7A | S306 | SCREW | $0.50 | ||||
9 | N/A | SMOKE UNIT ASSEMBLY | N/A | ||||
11 | P10057 | PISTON PIN | $0.95 | ||||
12 | PA10671A | WORM GEAR (smoke drive) | $3.00 | 10 | $20.00 | ||
14 | P10045 | LEVER STUD | $1.25 | ||||
15 | PA15584 | PISTON LEVER | $3.00 | ||||
16 | N/A | CHASSIS (upper) | N/A | ||||
18 | N/A | ARMATURE SPACER | N/A | ||||
19 | XA14B719 | ARMATURE ASSEMBLY | $29.50 | ||||
20 | W192 | WASHER | $0.50 | ||||
21 | N/A | FIELD ASSEMBLY | N/A | ||||
22 | N/A | BRUSH MOUNTING PLATE ASSEMBLY | N/A | ||||
23 | PA13A129 | BRUSH TUBE COVER | $0.50 | ||||
24 | W57 | SPLIT WASHER | $0.25 | ||||
25 | PA15A044 | BRUSH TUBE COVER BRACE | $0.75 | ||||
28 | S33 | SCREW | $0.25 | ||||
29 | S29 | SCREW | $0.50 | ||||
30 | N/A | ADJUSTING ROLL | N/A | ||||
30A | W46 | LOCKWASHER | $0.25 | ||||
31 | N/A | BRACKET | N/A | ||||
33 | S13 | SCREW | $0.50 | ||||
34 | N/A | SHOULDERED SCREW | N/A | ||||
35 | PA13A131 | BRUSH TUBE | $1.50 | 25 | $25.00 | ||
36 | P6881 | EYELET | $0.25 | 100 | $12.00 | ||
37 | PA13A130 | BRUSH SPRING | $1.95 | ||||
38 | PA13128 | BRUSH | $3.95 | 20 | $50.00 | ||
39 | PA15226 | PLAIN AXLE | $1.50 | ||||
39 | XA14A602A | FLANGED WHEEL ASSEMBLY (red) | $4.95 | 10 | $30.00 | ||
39 | N/A | FLANGED WHEEL & AXLE ASSEMBLY | N/A | ||||
40 | XA15A660 | PULL-MOR WHEEL ASSEMBLY (red) | $3.50 | 10 | $25.00 | ||
40 | PA15225 | GEAR AXLE | $3.50 | ||||
40 | PA10672 | WORM GEAR (motor) | $6.99 | ||||
40 | N/A | PULL-MOR WHEEL, GEAR & AXLE ASSEMBLY | N/A | ||||
41 | PA14869 | PULL-MOR TIRE | $2.00 | 24 | $24.00 | ||
43 | PA15286 | CHASSIS (lower) | $1.95 | ||||
43 | PA10887 | CROSSHEAD GUIDE | $4.50 | ||||
44 | PA4367 | TUBULAR RIVET | $0.35 | 50 | $15.00 | ||
44 | S5N33 | SCREW | $0.50 | 10 | $2.50 | ||
45 | PA9452 | SIDE ROD | $1.95 | 20 | $20.00 | ||
46 | PA7237A | PISTON ROD SPACER | $1.25 | ||||
46 | N/A | PA10081@ FRONT TRUCK | N/A | ||||
47 | PA10889 | CONNECTING ROD | $1.95 | 20 | $20.00 | ||
47 | N/A | XA13A083-A WHEEL & AXLE ASSEMBLY | N/A | ||||
48 | PA11099 | CROSSHEAD | $1.95 | 20 | $20.00 | ||
48 | N/A | PA13A082 TRUCK AXLE | N/A | ||||
49 | S5A37 | ECCENTRIC CRANK STUD | $1.25 | 20 | $15.00 | ||
49 | N/A | PA9990E WHEEL (red plastic) | N/A | ||||
50 | N/A | PISTON ROD SCREW | N/A | ||||
51 | S230B | SCREW | $0.25 | ||||
52 | N/A | TENDER BODY ASSEMBLY (21088) | N/A | ||||
52 | N/A | TENDER BODY ASSEMBLY (21089) | N/A | ||||
53 | N/A | REMOTE CONTROL ASSEMBLY | N/A | ||||
54 | PA10235A@ | TRUCK RIVET | $1.95 | 25 | $35.00 | ||
55 | PA10209 | INSULATING BUSHING | $1.25 | 25 | $20.00 | ||
56 | N/A | TENDER CHASSIS | N/A | ||||
57 | PA8715B | INSULATING WASHER | N/A | ||||
58 | PA15A583 | DRAWBAR | $2.00 | ||||
58 | N/A | FRONT TRUCK & DRAWBAR ASSEMBLY | N/A | ||||
58 | N/A | TUBULAR RIVET | N/A | ||||
58 | N/A | FRONT TRUCK ASSEMBLY | N/A | ||||
59 | XA12A050B@ | REAR TRUCK ASSEMBLY | $9.99 | ||||
59 | XA12A047@ | KNUCKLE COUPLER ASSEMBLY | $4.95 | ||||
59 | XA10238B | WHEEL & AXLE ASSEMBLY | $4.00 | ||||
59 | N/A | PA10140C@ METAL WHEEL | N/A | ||||
59 | N/A | PA9990 PLASTIC WHEEL | N/A | ||||
59 | N/A | PA10238 AXLE | N/A | ||||
60 | PA10207 | CONTACT SPRING | $2.80 | ||||
61 | N/A | SCREW | N/A | ||||
62 | PA6173 | SOLDER TERMINAL | $0.25 |
