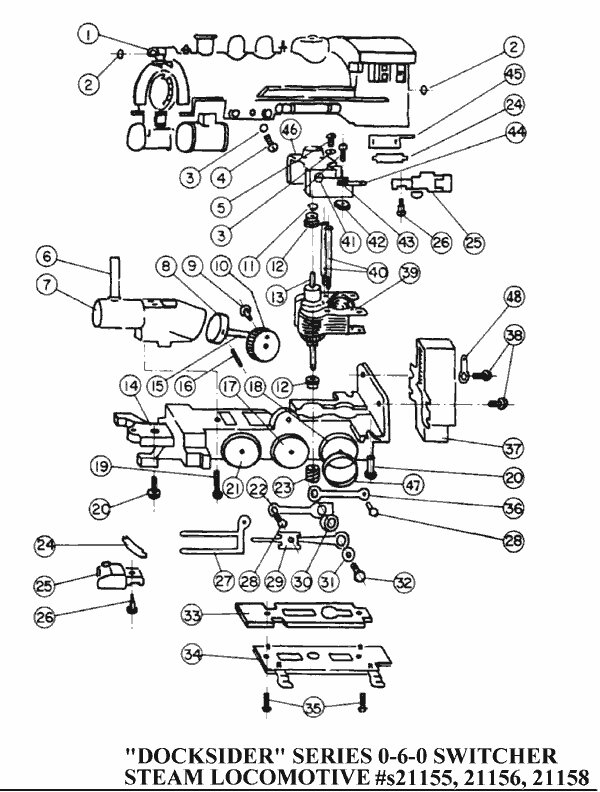

Diagram # | Product ID | Description | Price | ||||
---|---|---|---|---|---|---|---|
1 | N/A | BOILER ASSEMBLY (# 21155) | N/A | ||||
1 | N/A | BOILER ASSEMBLY (# 21156) | N/A | ||||
1 | N/A | BOILER ASSEMBLY (# 21158) | N/A | ||||
2 | P14653 | LAMP INSERT (#s 21155 & 21156) | $0.75 | ||||
3 | N/A | FIBRE WASHER | N/A | ||||
4 | N/A | SCREW | N/A | ||||
5 | S5A34 | SCREW | $0.95 | ||||
7 | N/A | SMOKE UNIT ASSEMBLY (# 21155 ONLY) | N/A | ||||
8 | N/A | PISTON (# 21155 ONLY) | N/A | ||||
10 | PA15019 | 22 TOOTH WORM GEAR (smoke drive# 21155 ONLY) | $4.00 | ||||
11 | W240 | FIBRE WASHER | $0.25 | ||||
12 | N/A | BEARING | N/A | ||||
13 | XA15B024 | ARMATURE ASSEMBLY | $25.00 | 6 | $90.00 | ||
14 | N/A | CHASSIS, BEARING & SPRING ASSEMBLY | N/A | ||||
16 | P10057 | PISTON PIN (# 21155 ONLY) | $0.95 | ||||
17 | PA15226 | PLAIN AXLE | $1.50 | ||||
17 | PA15226 | PLAIN AXLE | $1.50 | ||||
17 | N/A | FLANGELESS WHEEL & AXLE ASSEMBLY (#s 21155 & 21156) | N/A | ||||
17 | N/A | FLANGELESS WHEEL w/STUD (#s 21155 & 21156) | N/A | ||||
17 | N/A | FLANGELESS WHEEL & AXLE ASSEMBLY (# 21158) | N/A | ||||
17 | N/A | FLANGELESS WHEEL w/STUD (# 21158) | N/A | ||||
18 | XA15220 | PULL-MOR WHEEL, GEAR & AXLE ASSEMBLY (#s 21155 & 21156) | $8.00 | ||||
19 | S5N33 | SCREW | $0.50 | 10 | $2.50 | ||
19 | N/A | PULL-MOR WHEEL (#s 21155 & 21156) | N/A | ||||
20 | PA15225 | GEAR AXLE | $3.50 | ||||
20 | S181 | SCREW | $0.25 | ||||
21 | PA15226 | PLAIN AXLE | $1.50 | ||||
21 | PA15226 | PLAIN AXLE | $1.50 | ||||
21 | XA15A219 | FLANGED WHEEL & AXLE ASSEMBLY (#s 21155 & 21156) | $7.99 | ||||
21 | XA15A219 | FLANGED WHEEL & AXLE ASSEMBLY (# 21158) | $7.99 | ||||
21 | PA15A218 | 20 TOOTH WORM GEAR (motor) | $3.50 | ||||
21 | PA15031 | FLANGED WHEEL (#s 21155 & 21156) | $3.00 | ||||
21 | PA15031 | FLANGED WHEEL (# 21158) | $3.00 | ||||
22 | N/A | PULL-MOR WHEEL, GEAR & AXLE ASSEMBLY (# 21158) | N/A | ||||
22 | N/A | SIDE ROD (front) | N/A | ||||
23 | PA15A224 | WORM GEAR (armature) | $4.99 | ||||
23 | N/A | PULL-MOR WHEEL (# 21158) | N/A | ||||
24 | PA15225 | GEAR AXLE | $3.50 | ||||
24 | PA12355A | LEAF SPRING | $1.25 | ||||
25 | PA15A218 | 20 TOOTH WORM GEAR (motor) | $3.50 | ||||
25 | PA15215 | SOLID KNUCKLE COUPLER (# 21158 {Rear Only}) | $5.99 | ||||
25 | XA12A047@ | KNUCKLE COUPLER ASSEMBLY (#s 21155, 21156 & SOME 21158 {Front Only}) | $4.95 | ||||
26 | S5A29 | SCREW | $1.25 | ||||
27 | PA10595R | CROSSHEAD GUIDE (right) | $3.00 | ||||
27 | PA10595L | CROSSHEAD GUIDE (left) | $3.00 | ||||
28 | N/A | PISTON ROD SCREW | N/A | ||||
29 | XA15A008 | CROSSHEAD ASSEMBLY | $7.50 | ||||
30 | PA7237A | PISTON ROD SPACER | $1.25 | ||||
31 | N/A | FIBRE WASHER | N/A | ||||
32 | S5A37 | ECCENTRIC CRANK SCREW | $1.25 | 20 | $15.00 | ||
33 | N/A | CHASSIS (lower) | N/A | ||||
34 | XA15222 | PICK-UP ASSEMBLY | $30.00 | ||||
34 | PA15178 | PICK-UP SHOE | $2.50 | ||||
35 | S4N30 | SCREW | $0.50 | ||||
36 | N/A | SIDE ROD (rear) | N/A | ||||
37 | N/A | REMOTE CONTROL ASSEMBLY (#s 21155 & 21156) | N/A | ||||
38 | N/A | SCREW (#s 21155 & 21156) | N/A | ||||
39 | N/A | FIELD ASSEMBLY | N/A | ||||
40 | N/A | SHOULDERED SCREW | N/A | ||||
41 | PA14A917 | BRUSH | $1.00 | ||||
42 | N/A | PAL NUT | N/A | ||||
43 | PA14A919R | BRUSH SPRING (right) | $0.75 | ||||
43 | PA14A919L | BRUSH SPRING (left) | $0.75 | ||||
44 | PA10059 | SOLDER TERMINAL | $0.25 | ||||
45 | N/A | COUPLER BRACKET | N/A | ||||
46 | N/A | BRUSH BEARING MOUNT | N/A | ||||
47 | PA15A034 | PULL-MOR TIRE | $2.50 | ||||
48 | PA6173 | SOLDER TERMINAL (#s 21155 & 21156) | $0.25 |
