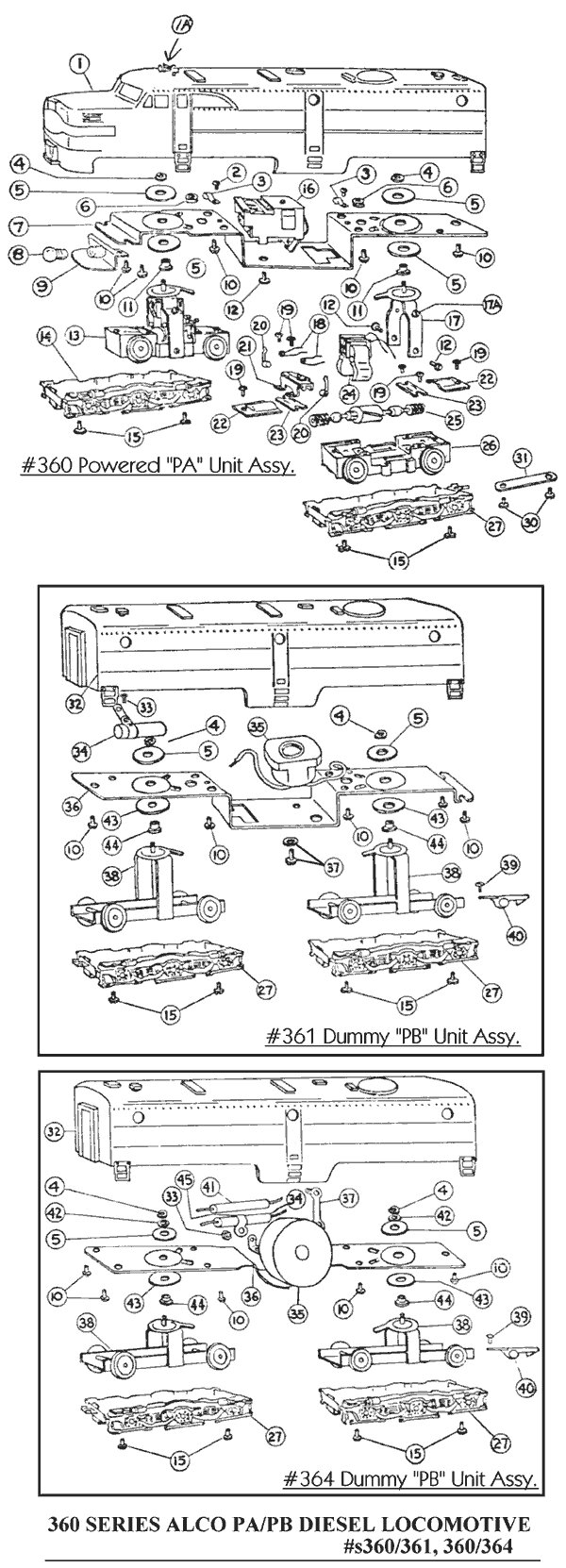

| Diagram # | Product ID | Description | Price | ||||
|---|---|---|---|---|---|---|---|
| 1 | PA11491C@ | STEP | $1.95 | ||||
| 1 | PA11488 | HEADLIGHT LENS | $1.75 | ||||
| 1 | PA11487@ | PORTHOLE LENS | $0.75 | ||||
| 1 | S187 | DRIVE PIN (for step) | $0.50 | ||||
| 1 | N/A | "A" UNIT CABIN | N/A | ||||
| 1A | N/A | PLASTIC HORN | N/A | ||||
| 2 | S147 | SCREW | $0.25 | ||||
| 3 | N/A | WIRE CLIP | N/A | ||||
| 5 | PA8715B | FIBRE WASHER | N/A | ||||
| 6 | PA4356 | RUBBER GROMMET | $0.50 | ||||
| 7 | N/A | CHASSIS (# 360 PA) | N/A | ||||
| 8 | PA8999 | 14v BULB | $1.00 | ||||
| 9 | XA11477 | LAMP BRACKET ASSEMBLY | $8.00 | ||||
| 12 | S230 | SCREW | $0.25 | ||||
| 13 | N/A | MOTOR ASSEMBLY | N/A | ||||
| 14 | N/A | TRUCK SIDE & BOTTOM PLATE ASSEMBLY (front # 360 PA ONLY) | N/A | ||||
| 15 | S249 | SCREW | $1.25 | ||||
| 16 | XA10587E | REMOTE CONTROL UNIT | $44.99 | ||||
| 17 | XA11457 | FIELD CLAMP ASSEMBLY | $3.00 | ||||
| 17 | N/A | DRUM | N/A | ||||
| 17A | S0 | SCREW | $0.95 | 20 | $10.00 | ||
| 18 | PA11000R@ | BRUSH SPRING (right) | $1.45 | ||||
| 18 | XA9612CRP | TOP FINGER UNIT | $3.99 | ||||
| 19 | PA11000L@ | BRUSH SPRING (left) | $1.45 | ||||
| 19 | XA9612BRP | BOTTOM FINGER UNIT | $3.99 | ||||
| 19 | S171 | SCREW | $0.95 | 20 | $10.00 | ||
| 20 | PA11684 | BRUSH | $7.99 | ||||
| 21 | XA11454RP | BRUSH BRACKET ASSEMBLY (# 360/364) | $14.99 | ||||
| 21 | N/A | BRUSH BRACKET ASSEMBLY (# 360/361) | N/A | ||||
| 22 | PA11441 | WORM COVER | $2.95 | ||||
| 23 | PA11453 | BEARING STRAP | $3.00 | ||||
| 25 | N/A | ARMATURE ASSEMBLY | N/A | ||||
| 26 | XA11473 | INSULATED WHEEL | $7.99 | ||||
| 26 | PA11447 | WORM GEAR | $9.99 | ||||
| 26 | PA11343@ | SOLID WHEEL | $4.95 | ||||
| 26 | PA10006 | GEAR AXLE | $2.50 | ||||
| 26 | PA10005 | PLAIN AXLE | $2.50 | ||||
| 26 | N/A | TRUCK CHASSIS & WHEEL ASSEMBLY | N/A | ||||
| 27 | N/A | TRUCK SIDE & BOTTOM PLATE ASSEMBLY (coupler end) | N/A | ||||
| 28 | N/A | 4 CONDUCTOR CABLE (NOT SHOWN ON DRAWING) | N/A | ||||
| 29 | N/A | N/A | |||||
| 30 | S326 | SCREW | $0.50 | ||||
| 31 | PA11505@ | DRAWBAR | N/A | ||||
| 32 | PA11491C@ | STEP | $1.95 | ||||
| 32 | PA11487@ | PORTHOLE LENS | $0.75 | ||||
| 32 | S187 | DRIVE PIN (for step) | $0.50 | ||||
| 32 | N/A | "B" UNIT CABIN (# 361 PB) | N/A | ||||
| 32 | N/A | "B" UNIT CABIN (# 364 PB) | N/A | ||||
| 33 | PA4362 | RIVET (# 361 PB) | $0.50 | ||||
| 33 | N1 | NUT (# 364 PB) | $0.25 | 40 | $6.00 | ||
| 34 | PA11A991 | CONDENSER (# 364 PB) | $3.50 | 10 | $20.00 | ||
| 34 | PA11365 | CONDENSER (# 361 PB) | $3.95 | ||||
| 35 | N/A | SPEAKER (# 361 PB) | N/A | ||||
| 35 | XA11710@ | SPEAKER (# 364 PB) | N/A | ||||
| 36 | N/A | CHASSIS (# 361 PB) | N/A | ||||
| 36 | N/A | CHASSIS & BRACKET ASSEMBLY (# 364 PB) | N/A | ||||
| 37 | W84 | WASHER (# 361 PB) | $0.15 | ||||
| 37 | S50A | SCREW (# 361 PB) | $0.25 | ||||
| 37 | N/A | INSULATOR & TERMINAL ASSEMBLY (# 364 PB) | N/A | ||||
| 38 | XA11598 | WHEEL & CHASSIS ASSEMBLY (# 364 PB) | $29.99 | ||||
| 38 | XA11596A | WHEEL & CHASSIS ASSEMBLY (# 361 PB) | $24.99 | ||||
| 39 | S334 | SCREW | $0.50 | ||||
| 40 | XA11484L | COUPLER ARM ASSEMBLY | $3.50 | ||||
| 40 | PA10692@ | COUPLER WEIGHT | $0.75 | ||||
| 40 | PA10467 | COUPLER PIN | $0.95 | ||||
| 41 | PA11685 | RESISTOR (# 364 PB ONLY) | $2.50 | ||||
| 42 | W83 | WASHER (# 364 PB ONLY) | $0.50 | 20 | $4.00 | ||
| 43 | W124 | WASHER (# 364 PB) | $0.50 | ||||
| 43 | PA8715B | FIBRE WASHER (# 361 PB) | N/A | ||||
| 45 | N/A | BUS BAR (# 364 PB ONLY) | N/A |
