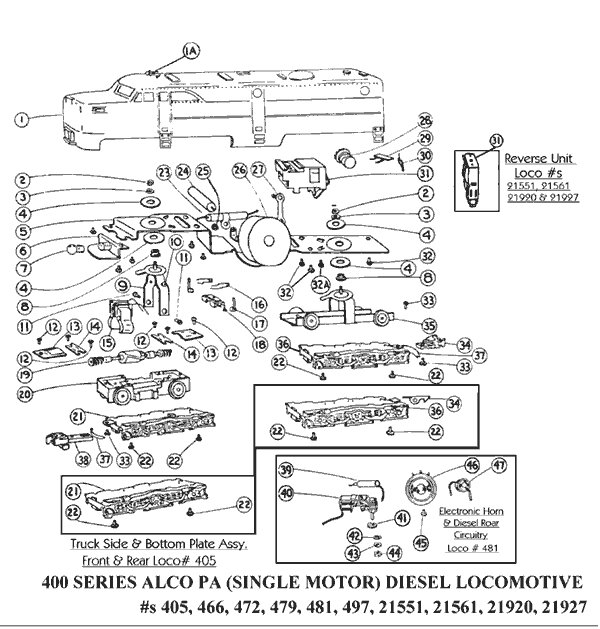

Diagram # | Product ID | Description | Price | ||||
---|---|---|---|---|---|---|---|
NOT SHOWN | N/A | 4 CONDUCTOR CABLE | N/A | ||||
1 | PA11491B@ | STEP (2-hole #s 405, 466, 472, 479, 481 & 497) | $1.95 | ||||
1 | PA11491A@ | STEP (1-hole #s 497, 21551 & 21561) | $1.95 | ||||
1 | PA11488 | HEADLIGHT LENS | $1.75 | ||||
1 | PA11487@ | PORTHOLE LENS (#s 405, 466, 472, 479, 481 & 497) | $0.75 | ||||
1 | S187 | DRIVE PIN (for step NOT USED #s 21920 & 21927) | $0.50 | ||||
1 | N/A | "A" UNIT CABIN(# 405) | N/A | ||||
1 | N/A | "A" UNIT CABIN(# 466) | N/A | ||||
1 | N/A | "A" UNIT CABIN(# 472) | N/A | ||||
1 | N/A | "A" UNIT CABIN(# 479) | N/A | ||||
1 | N/A | "A" UNIT CABIN(# 481) | N/A | ||||
1 | N/A | "A" UNIT CABIN(# 497) | N/A | ||||
1 | N/A | "A" UNIT CABIN(# 21551) | N/A | ||||
1 | N/A | "A" UNIT CABIN(# 21920) | N/A | ||||
1 | N/A | "A" UNIT CABIN(# 21927) | N/A | ||||
1A | N/A | PLASTIC HORN | N/A | ||||
3 | W2A28 | SPRING WASHER(# 21920) | $1.75 | ||||
3 | W83 | WASHER | $0.50 | 20 | $4.00 | ||
4 | W124 | FIBRE WASHER | $0.50 | ||||
4 | N/A | STEEL WASHER (rear truck below chassis #s 21551, 21561, 21920 & 21927) | N/A | ||||
5 | N/A | CHASSIS (#s 21551, 21561 & 21927) | N/A | ||||
6 | XA11477 | LAMP BRACKET ASSEMBLY | $8.00 | ||||
7 | PA8999 | 14v BULB | $1.00 | ||||
9 | XA13A037 | YOKE ASSEMBLY | $7.50 | ||||
9 | XA11457 | FIELD CLAMP ASSEMBLY(#s 405 & 466) | $3.00 | ||||
9 | N/A | FIELD CLAMP ASSEMBLY | N/A | ||||
10 | S165 | SCREW | $0.25 | ||||
10 | S0 | SCREW(#s 405 & 466) | $0.95 | 20 | $10.00 | ||
11 | S406 | SCREW | $0.50 | ||||
11 | S230B | SCREW(#s 405 & 466) | $0.25 | ||||
12 | S171 | SCREW | $0.95 | 20 | $10.00 | ||
13 | PA11441 | WORM COVER | $2.95 | ||||
14 | PA11453 | BEARING STRAP | $3.00 | ||||
15 | N/A | FIELD ASSEMBLY(# 405) | N/A | ||||
16 | PA11000R@ | BRUSH SPRING (right) | $1.45 | ||||
17 | PA11684 | BRUSH | $7.99 | ||||
17 | PA11000L@ | BRUSH SPRING (left) | $1.45 | ||||
18 | N/A | BRUSH BRACKET ASSEMBLY (# 405) | N/A | ||||
19 | XA11454RP | BRUSH BRACKET ASSEMBLY | $14.99 | ||||
19 | N/A | ARMATURE ASSEMBLY(#s 405, 466 & 472) | N/A | ||||
19 | N/A | ARMATURE ASSEMBLY | N/A | ||||
20 | PA15281 | GEAR AXLE (#s 21551, 21561, 21920 & 21927) | $2.50 | ||||
20 | PA15A218 | WORM GEAR (#s 481, 497, 21551, 21561, 21920 & 21927) | $3.50 | ||||
20 | XA11473 | INSULATED WHEEL | $7.99 | ||||
20 | PA11447 | WORM GEAR | $9.99 | ||||
20 | PA11343@ | SOLID WHEEL | $4.95 | ||||
20 | PA10006 | GEAR AXLE | $2.50 | ||||
20 | N/A | TRUCK CHASSIS & WHEEL ASSEMBLY (# 405) | N/A | ||||
20 | N/A | SOLID WHEEL (#s 21551, 21561, 21920 & 21927) | N/A | ||||
20 | N/A | PULL-MOR WHEEL | N/A | ||||
20 | N/A | PULL-MOR WHEEL (#s 21551, 21561, 21920 & 21927) | N/A | ||||
20 | N/A | PA14A890 PULL-MOR TIRE (#s 21551, 21561, 21920 & 21927) | N/A | ||||
21 | PA12A586 | COLLECTOR FRAME | $2.75 | ||||
21 | PA11677A | PICK-UP SHOE | $4.95 | ||||
21 | PA11533 | PICK-UP SPRING | $2.50 | ||||
21 | N/A | TRUCK SIDE & BOTTOM PLATE ASSEMBLY (# 405) | N/A | ||||
21 | N/A | TRUCK SIDE & COLLECTOR ASSEMBLY | N/A | ||||
22 | S249 | SCREW | $1.25 | ||||
22 | N/A | SCREW (rear truck #s 21551, 21561, 21920 & 21927) | N/A | ||||
23 | PA11685 | RESISTOR (# 405) | $2.50 | ||||
24 | PA11A991 | CONDENSER (# 405) | $3.50 | 10 | $20.00 | ||
25 | N1 | NUT (# 405) | $0.25 | 40 | $6.00 | ||
26 | XA11710@ | SPEAKER (# 405) | N/A | ||||
27 | N/A | INSULATOR & TERMINAL ASSEMBLY (# 405) | N/A | ||||
28 | N/A | DRUM (#s 405, 466, 472, 479, 481 & 497) | N/A | ||||
29 | XA9612CRP | TOP FINGER UNIT (#s 405, 466, 472, 479, 481 & 497) | $3.99 | ||||
30 | XA9612BRP | BOTTOM FINGER UNIT (#s 405, 466, 472, 479, 481 & 497) | $3.99 | ||||
31 | XA10587E | REMOTE CONTROL UNIT (4-position #s 405, 466, 472, 479, 481 & 497) | $44.99 | ||||
31 | N/A | REMOTE CONTROL UNIT (2-position #s 21551, 21561, 21920 & 21927) | N/A | ||||
32A | S230B | SCREW (for R.C. unit) | $0.25 | ||||
32A | N/A | SCREW (for R.C. unit #s 21551, 21561, 21920 & 21927) | N/A | ||||
33 | S334 | SCREW (# 405) | $0.50 | ||||
34 | XA12A047@ | KNUCKLE COUPLER | $4.95 | ||||
34 | XA11484L | COUPLER ARM ASSEMBLY (# 405) | $3.50 | ||||
34 | PA10692@ | COUPLER WEIGHT (# 405) | $0.75 | ||||
34 | PA10467 | COUPLER PIN (# 405) | $0.95 | ||||
35 | PA15226 | PLAIN AXLE (#s 21551, 21561, 21920 & 21927) | $1.50 | ||||
35 | XA11598 | WHEEL & CHASSIS ASSEMBLY | $29.99 | ||||
35 | XA11473 | INSULATED WHEEL | $7.99 | ||||
35 | PA11343@ | SOLID WHEEL | $4.95 | ||||
35 | PA10005 | PLAIN AXLE | $2.50 | ||||
35 | N/A | WHEEL & CHASSIS ASSEMBLY (#s 21551, 21561, 21920 & 21927) | N/A | ||||
35 | N/A | SOLID WHEEL (#s 21551, 21561, 21920 & 21927) | N/A | ||||
35 | XA14870 | INSULATED WHEEL (#s 21551, 21561, 21920 & 21927) | N/A | ||||
36 | PA12A586 | COLLECTOR FRAME | $2.75 | ||||
36 | PA11677A | PICK-UP SHOE | $4.95 | ||||
36 | PA11533 | PICK-UP SPRING | $2.50 | ||||
36 | N/A | TRUCK SIDE & BOTTOM PLATE ASSEMBLY (coupler end # 405) | N/A | ||||
36 | N/A | TRUCK SIDE & COLLECTOR ASSEMBLY | N/A | ||||
37 | N/A | LEAF SPRING (ALL EXCEPT # 405) | N/A | ||||
38 | XA12A358 | COUPLER & ARM ASSEMBLY (ALL EXCEPT # 405) | $7.95 | ||||
38 | PA12A358 | COUPLER EXTENSION ARM (ALL EXCEPT # 405) | $1.75 | ||||
38 | XA12A047@ | KNUCKLE COUPLER (ALL EXCEPT # 405) | $4.95 | ||||
38 | N/A | #s 39-47 DIESEL ROAR ASSEMBLY PARTS (# 481 ONLY) | N/A | ||||
39 | N/A | RESISTOR | N/A | ||||
40 | N/A | DIESEL SOUND GENERATOR | N/A | ||||
41 | PA10209 | BUSHING | $1.25 | 25 | $20.00 | ||
42 | N/A | WASHER | N/A | ||||
43 | PA4654 | LOCKWASHER | $0.25 | ||||
44 | N25 | NUT | $0.25 | ||||
45 | N/A | SCREW | N/A | ||||
46 | XA14A127@ | SPEAKER | N/A | ||||
46 | N/A | SPEAKER BRACKET | N/A | ||||
47 | PA14A914 | CONDENSER | $3.50 | 10 | $20.00 |
