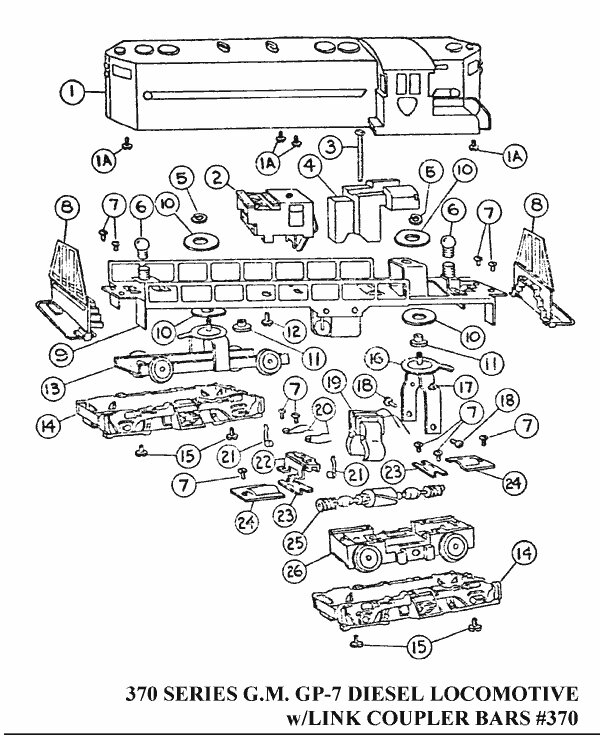

Diagram # | Product ID | Description | Price | ||||
---|---|---|---|---|---|---|---|
NOT SHOWN | N/A | 4 CONDUCTOR CABLE | N/A | ||||
1 | PA11518 | HEADLIGHT LENS | $1.75 | ||||
1 | PA11512 | HORN | $3.99 | ||||
1 | N/A | BODY ASSEMBLY | N/A | ||||
1 | N/A | HANDRAIL | N/A | ||||
2 | XA10587E | REMOTE CONTROL UNIT (4-position) | $44.99 | ||||
2 | XA9612CRP | TOP FINGER UNIT | $3.99 | ||||
2 | XA9612BRP | BOTTOM FINGER UNIT | $3.99 | ||||
2 | N/A | DRUM | N/A | ||||
3 | S33 | SCREW | $0.25 | ||||
4 | N/A | WEIGHT | N/A | ||||
6 | PA8999 | 14v BULB | $1.00 | ||||
7 | S171 | SCREW | $0.95 | 20 | $10.00 | ||
8 | PA11517@ | END RAIL FENCE | $4.25 | ||||
8 | PA11511@ | END CASTING | $4.99 | ||||
8 | N/A | END RAIL ASSEMBLY | N/A | ||||
9 | PA11509R@ | OIL TANK (right) | $2.50 | ||||
9 | PA11509L@ | OIL TANK (left) | $2.50 | ||||
9 | N/A | CHASSIS ASSEMBLY | N/A | ||||
10 | PA8715B | WASHER | N/A | ||||
12 | S230B | SCREW | $0.25 | ||||
13 | XA11598 | WHEEL & CHASSIS ASSEMBLY | $29.99 | ||||
13 | XA11473 | INSULATED WHEEL | $7.99 | ||||
13 | PA11343@ | SOLID WHEEL | $4.95 | ||||
13 | PA10005 | PLAIN AXLE | $2.50 | ||||
14 | PA12A586 | COLLECTOR FRAME | $2.75 | ||||
14 | PA11677A | PICKUP SHOE | $4.95 | ||||
14 | PA11533 | SPRING | $2.50 | ||||
14 | N/A | TRUCK SIDE & BOTTOM PLATE ASSEMBLY | N/A | ||||
14 | N/A | TRUCK SIDE & COLLECTOR ASSEMBLY (1953 Model) | N/A | ||||
15 | S249 | SCREW | $1.25 | ||||
16 | XA11457 | FIELD CLAMP ASSEMBLY | $3.00 | ||||
17 | S0 | SCREW | $0.95 | 20 | $10.00 | ||
18 | S230 | SCREW | $0.25 | ||||
19 | N/A | FIELD ASSEMBLY (1953 Model) | N/A | ||||
20 | PA11000R@ | BRUSH SPRING (right) | $1.45 | ||||
20 | PA11000L@ | BRUSH SPRING (left ) | $1.45 | ||||
21 | PA11684 | BRUSH | $7.99 | ||||
21 | N/A | BRUSH HOLDER ASSEMBLY | N/A | ||||
22 | N/A | BRUSH BRACKET ASSEMBLY | N/A | ||||
23 | PA11453 | BEARING STRAP | $3.00 | ||||
24 | PA11441 | WORM COVER | $2.95 | ||||
25 | N/A | ARMATURE ASSEMBLY | N/A | ||||
25 | N/A | ARMATURE ASSEMBLY (1953 Model) | N/A | ||||
26 | XA11473 | INSULATED WHEEL | $7.99 | ||||
26 | PA11447 | WORM GEAR | $9.99 | ||||
26 | PA11447 | WORM GEAR | $9.99 | ||||
26 | PA11343@ | SOLID WHEEL | $4.95 | ||||
26 | PA11343@ | SOLID WHEEL | $4.95 | ||||
26 | PA10006 | GEAR AXLE | $2.50 | ||||
26 | PA10006 | GEAR AXLE | $2.50 | ||||
26 | N/A | TRUCK CHASSIS & WHEEL ASSEMBLY | N/A | ||||
26 | N/A | TRUCK CHASSIS & WHEEL ASSEMBLY (1953 Model) | N/A | ||||
26 | N/A | PULL-MOR WHEEL | N/A |
