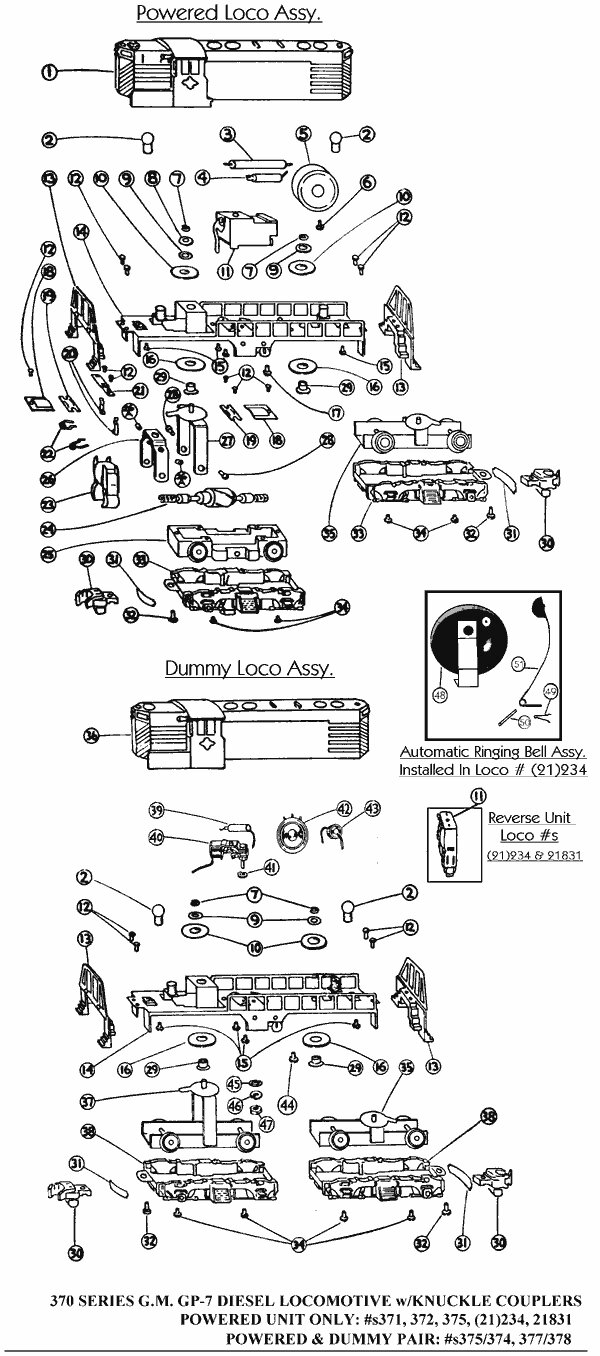

Parts for American Flyer 370 Series GM GP-7 Switcher Locomotive

Diagram #	Product ID	Description	Price
(#s 39-47) DIESEL ROAR ASSEMBLY (# 378 DUMMY LOCO ONLY)	N/A		N/A
(#s30-33)	N/A	TRUCK & COUPLER ASSEMBLY (#s 372, 377/378, 21234 & 21831)	N/A
(#s48-51) AUTOMATIC RINGING BELL ASSEMBLY (# (21)234 ONLY)	N/A		N/A
NOT SHOWN	N/A	4 CONDUCTOR CABLE	N/A
1	PA11518	HEADLIGHT LENS	$1.75
1	PA11512	HORN	$3.99
1	N/A	BODY ASSEMBLY(# 371 & 375 GM/AF)	N/A
1	N/A	BODY ASSEMBLY(# 372)	N/A
1	N/A	BODY ASSEMBLY(# 375 TEXAS & PACIFIC)	N/A
1	N/A	BODY ASSEMBLY(# 377)	N/A
1	N/A	BODY ASSEMBLY(# 21234)	N/A
1	N/A	BODY ASSEMBLY(# 21831)	N/A
1	N/A	HANDRAIL	N/A
2	PA8999	14v BULB	$1.00
3	PA11685	RESISTOR (#s 375 T&P & 375 GM/AF)	$2.50
4	PA11A991	CONDENSER (#s 375 T&P & 375 GM/AF)	$3.50		10	$20.00
5	XA12B144@	SPEAKER (#s 375 T&P & 375 GM/AF)	N/A
6	S322	SCREW (#s 375 T&P & 375 GM/AF)	$0.25
8	W2A28	SPRING WASHER (#s 21234 & 21831)	$1.75
8	W83	WASHER (#s372, 375/374, 377/378, 21831)	$0.50		20	$4.00
9	W143	WASHER (#s375/74 & 377/378)	$0.50
9	W126	STEEL WASHER (# 372)	$0.25
10	W124	WASHER(#s 371, 372, 375GM/AF, 375/374, {21234 & 21831 motor end})	$0.50
10	N/A	STEEL WASHER (non-motor end #s 21234 & 21831)	N/A
10	PA8715B	WASHER (#s 377/378)	N/A
11	XA10587E	REMOTE CONTROL UNIT (4-position)	$44.99
11	XA9612CRP	TOP FINGER UNIT	$3.99
11	XA9612BRP	BOTTOM FINGER UNIT	$3.99
11	N/A	DRUM	N/A
11	N/A	REMOTE CONTROL UNIT (2-position #s 21234 & 21831)	N/A
12	S171	SCREW	$0.95		20	$10.00
13	PA11517@	END RAIL FENCE	$4.25
13	N/A	END RAIL ASSEMBLY	N/A
14	PA11509R@	OIL TANK (right)	$2.50
14	PA11509L@	OIL TANK (left)	$2.50
14	N/A	CHASSIS ASSEMBLY (sheet metal #s 371, 375 GM/AF )	N/A
14	N/A	CHASSIS ASSEMBLY (sheet metal # 375/374)	N/A
14	N/A	CHASSIS ASSEMBLY (die cast #s 372 & 375/734)	N/A
14	N/A	CHASSIS ASSEMBLY (die cast # 377/378)	N/A
14	N/A	CHASSIS ASSEMBLY (die cast # 21234)	N/A
14	N/A	CHASSIS ASSEMBLY (die cast # 21831)	N/A
15	S4N30	SCREW (#s 372, 375/374 DIE CAST CHASSIS, 377/378, 21234 & 21831)	$0.50
16	W124B	FIBRE WASHER (motor end #s 21234 & 21831)	$0.50
16	PA8715B	FIBRE WASHER (#s 371, 372, 375 GM/AF, 375/374 & 377/378)	N/A
16	N/A	STEEL WASHER (non-motor end #s 21234 & 21831)	N/A
17	S230B	SCREW	$0.25
17	N/A	SCREW ( #s 21234 & 21831)	N/A
18	PA11441	WORM COVER	$2.95
19	PA11453	BEARING STRAP	$3.00
20	PA11684	BRUSH	$7.99
21	N/A	BRUSH BRACKET ASSEMBLY (#s 371, 375GM/AF & 375/374)	N/A
22	XA11454RP	BRUSH BRACKET ASSEMBLY (#s 372, 377/378, 21234 & 21831)	$14.99
22	PA11000R@	BRUSH SPRING (right)	$1.45
22	PA11000L@	BRUSH SPRING (left )	$1.45
23	N/A	FIELD ASSEMBLY (#s 371 & 375GM/AF)	N/A
24	N/A	ARMATURE ASSEMBLY (#s 371, 375GM/AF, 372, & 375/374)	N/A
24	N/A	ARMATURE ASSEMBLY (#s 377/378, 21234 & 21831)	N/A
25	PA15281	GEAR AXLE	$2.50
25	PA15A218	WORM GEAR	$3.50
25	PA14A890	PULL-MOR TIRE	$2.95
25	XA11473	INSULATED WHEEL	$7.99
25	PA11447	WORM GEAR	$9.99
25	PA11343@	SOLID WHEEL	$4.95
25	PA10006	GEAR AXLE	$2.50
25	N/A	TRUCK CHASSIS & WHEEL ASSEMBLY (#s 371, 375GM/AF & 375/374)	N/A
25	N/A	PULL-MOR WHEEL	N/A
25	N/A	SOLID WHEEL	N/A
25	N/A	PULL-MOR WHEEL	N/A
26	PA13034	FIELD CLAMP (#s 372, 375/374, 377/378, 21234 & 21831)	$5.00
26	XA11457	FIELD CLAMP ASSEMBLY (#s 371 & 375GM/AF)	$3.00
26A	S165	SET SCREW (#s 372, 375/374, 377/378, 21234 & 21831)	$0.25
26A	S0	SET SCREW (#s 371 & 375GM/AF)	$0.95		20	$10.00
27	XA13A037	YOKE ASSEMBLY (#s 372, 375/374, 377/378, 21234 & 21831)	$7.50
28	S406	SCREW (#s 372, 375/374, 377/378, 21234 & 21831)	$0.50
28	S230	SCREW (#s 371 & 375GM/AF)	$0.25
30	XA12A047@	KNUCKLE COUPLER	$4.95
31	PA12355A	LEAF SPRING	$1.25
32	S3A71	COUPLER SCREW (#s 371, 375GM/AF & 375/374)	$1.99
33	PA12A586	COLLECTOR FRAME	$2.75
33	PA12A586	COLLECTOR FRAME	$2.75
33	PA11677A	PICKUP SHOE	$4.95
33	PA11677A	PICKUP SHOE	$4.95
33	PA11533	SPRING	$2.50
33	PA11533	SPRING	$2.50
33	N/A	TRUCK SIDE & COLLECTOR ASSEMBLY (#s 371, 375GM/AF & 375/374)	N/A
33	N/A	TRUCK SIDE & COLLECTOR ASSEMBLY (#s 372, 377/378, 21234 & 21831)	N/A
34	S249	SCREW	$1.25
35	PA15A446	CAM	$1.25
35	PA15226	PLAIN AXLE	$1.50
35	PA15226	PLAIN AXLE	$1.50
35	PA15225	GEAR AXLE	$3.50
35	XA11598	WHEEL & CHASSIS ASSEMBLY (#s 371, 372, 375 GM/AF, & 375/374)	$29.99
35	XA11473	INSULATED WHEEL	$7.99
35	PA11343@	SOLID WHEEL	$4.95
35	PA10005	PLAIN AXLE	$2.50
35	N/A	WHEEL & CHASSIS ASSEMBLY (#s 377/378 & 21831)	N/A
35	N/A	SOLID WHEEL	N/A
35	XA14870	INSULATED WHEEL	N/A
35	N/A	WHEEL & CHASSIS ASSEMBLY (# 21234)	N/A
35	N/A	SOLID WHEEL	N/A
35	XA14870	INSULATED WHEEL	N/A
36	PA11518	HEADLIGHT LENS	$1.75
36	PA11512	HORN	$3.99
36	N/A	BODY ASSEMBLY(# 374 DUMMY)	N/A
36	N/A	BODY ASSEMBLY(# 378 DUMMY)	N/A
36	N/A	HANDRAIL	N/A
37	PA15226	PLAIN AXLE	$1.50
37	XA14A931	WHEEL & CHASSIS ASSEMBLY (# 378 DUMMY)	$19.95
37	XA11596A	WHEEL & CHASSIS ASSEMBLY (# 374 DUMMY)	$24.99
37	XA11473	INSULATED WHEEL	$7.99
37	PA11343@	SOLID WHEEL	$4.95
37	PA10005	PLAIN AXLE	$2.50
37	N/A	SOLID WHEEL	N/A
37	XA14870	INSULATED WHEEL	N/A
38	PA12A586	COLLECTOR FRAME	$2.75
38	PA11677A	PICKUP SHOE	$4.95
38	PA11533	SPRING	$2.50
38	N/A	TRUCK SIDE & BOTTOM PLATE ASSEMBLY(# 374 DUMMY)	N/A
38	N/A	TRUCK SIDE & COLLECTOR ASSEMBLY (# 378 DUMMY)	N/A
39	N/A	RESISTOR	N/A
40	N/A	DIESEL SOUND GENERATOR	N/A
41	PA10209	BUSHING	$1.25		25	$20.00
42	S171	SCREW	$0.95		20	$10.00
42	N/A	SPEAKER BRACKET	N/A
43	PA14A914	CONDENSER	$3.50		10	$20.00
44	N/A	SCREW	N/A
46	N/A	LOCKWASHER	N/A
47	N25	NUT	$0.25
48	N/A	BELL & BRACKET ASSEMBLY	N/A
49	N/A	TENSION SPRING	N/A
50	N/A	PIN	N/A
51	N/A	SPRING & BRACKET ASSEMBLY	N/A
