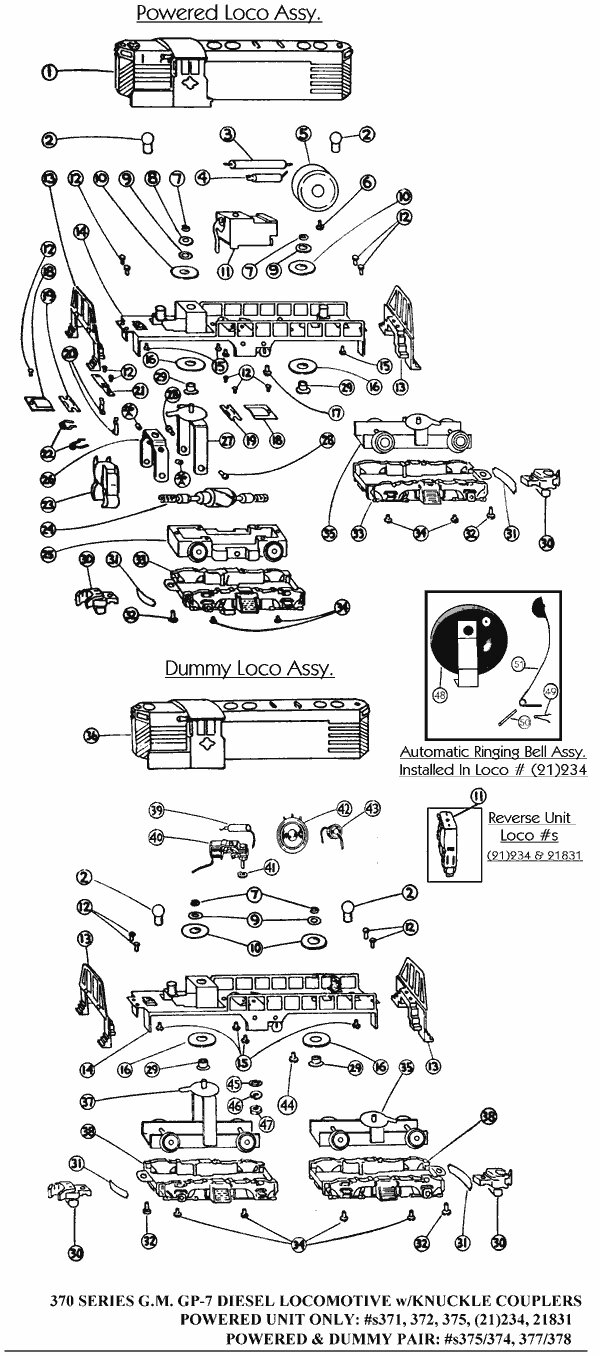

Diagram # | Product ID | Description | Price | ||||
---|---|---|---|---|---|---|---|
(#s 39-47) DIESEL ROAR ASSEMBLY (# 378 DUMMY LOCO ONLY) | N/A | N/A | |||||
(#s30-33) | N/A | TRUCK & COUPLER ASSEMBLY (#s 372, 377/378, 21234 & 21831) | N/A | ||||
(#s48-51) AUTOMATIC RINGING BELL ASSEMBLY (# (21)234 ONLY) | N/A | N/A | |||||
(NOT SHOWN): | N/A | 4 CONDUCTOR CABLE | N/A | ||||
1 | PA11518 | HEADLIGHT LENS | $1.75 | ||||
1 | PA11512 | HORN | $3.99 | ||||
1 | N/A | BODY ASSEMBLY(# 371 & 375 GM/AF) | N/A | ||||
1 | N/A | BODY ASSEMBLY(# 372) | N/A | ||||
1 | N/A | BODY ASSEMBLY(# 375 TEXAS & PACIFIC) | N/A | ||||
1 | N/A | BODY ASSEMBLY(# 377) | N/A | ||||
1 | N/A | BODY ASSEMBLY(# 21234) | N/A | ||||
1 | N/A | BODY ASSEMBLY(# 21831) | N/A | ||||
1 | N/A | HANDRAIL | N/A | ||||
2 | PA8999 | 14v BULB | $1.00 | ||||
3 | PA11685 | RESISTOR (#s 375 T&P & 375 GM/AF) | $2.50 | ||||
4 | PA11A991 | CONDENSER (#s 375 T&P & 375 GM/AF) | $3.50 | 10 | $20.00 | ||
5 | XA12B144@ | SPEAKER (#s 375 T&P & 375 GM/AF) | N/A | ||||
6 | S322 | SCREW (#s 375 T&P & 375 GM/AF) | $0.25 | ||||
8 | W2A28 | SPRING WASHER (#s 21234 & 21831) | $1.75 | ||||
8 | W83 | WASHER (#s372, 375/374, 377/378, 21831) | $0.50 | 20 | $4.00 | ||
9 | W143 | WASHER (#s375/74 & 377/378) | $0.50 | ||||
9 | W126 | STEEL WASHER (# 372) | $0.25 | ||||
10 | W124 | WASHER(#s 371, 372, 375GM/AF, 375/374, {21234 & 21831 motor end}) | $0.50 | ||||
10 | N/A | STEEL WASHER (non-motor end #s 21234 & 21831) | N/A | ||||
10 | PA8715B | WASHER (#s 377/378) | N/A | ||||
11 | XA10587E | REMOTE CONTROL UNIT (4-position) | $44.99 | ||||
11 | XA9612CRP | TOP FINGER UNIT | $3.99 | ||||
11 | XA9612BRP | BOTTOM FINGER UNIT | $3.99 | ||||
11 | N/A | DRUM | N/A | ||||
11 | N/A | REMOTE CONTROL UNIT (2-position #s 21234 & 21831) | N/A | ||||
12 | S171 | SCREW | $0.95 | 20 | $10.00 | ||
13 | PA11517@ | END RAIL FENCE | $4.25 | ||||
13 | N/A | END RAIL ASSEMBLY | N/A | ||||
14 | PA11509R@ | OIL TANK (right) | $2.50 | ||||
14 | PA11509L@ | OIL TANK (left) | $2.50 | ||||
14 | N/A | CHASSIS ASSEMBLY (sheet metal #s 371, 375 GM/AF ) | N/A | ||||
14 | N/A | CHASSIS ASSEMBLY (sheet metal # 375/374) | N/A | ||||
14 | N/A | CHASSIS ASSEMBLY (die cast #s 372 & 375/734) | N/A | ||||
14 | N/A | CHASSIS ASSEMBLY (die cast # 377/378) | N/A | ||||
14 | N/A | CHASSIS ASSEMBLY (die cast # 21234) | N/A | ||||
14 | N/A | CHASSIS ASSEMBLY (die cast # 21831) | N/A | ||||
15 | S4N30 | SCREW (#s 372, 375/374 DIE CAST CHASSIS, 377/378, 21234 & 21831) | $0.50 | ||||
16 | W124B | FIBRE WASHER (motor end #s 21234 & 21831) | $0.50 | ||||
16 | PA8715B | FIBRE WASHER (#s 371, 372, 375 GM/AF, 375/374 & 377/378) | N/A | ||||
16 | N/A | STEEL WASHER (non-motor end #s 21234 & 21831) | N/A | ||||
17 | S230B | SCREW | $0.25 | ||||
17 | N/A | SCREW ( #s 21234 & 21831) | N/A | ||||
18 | PA11441 | WORM COVER | $2.95 | ||||
19 | PA11453 | BEARING STRAP | $3.00 | ||||
20 | PA11684 | BRUSH | $7.99 | ||||
21 | N/A | BRUSH BRACKET ASSEMBLY (#s 371, 375GM/AF & 375/374) | N/A | ||||
22 | XA11454RP | BRUSH BRACKET ASSEMBLY (#s 372, 377/378, 21234 & 21831) | $14.99 | ||||
22 | PA11000R@ | BRUSH SPRING (right) | $1.45 | ||||
22 | PA11000L@ | BRUSH SPRING (left ) | $1.45 | ||||
23 | N/A | FIELD ASSEMBLY (#s 371 & 375GM/AF) | N/A | ||||
24 | N/A | ARMATURE ASSEMBLY (#s 371, 375GM/AF, 372, & 375/374) | N/A | ||||
24 | N/A | ARMATURE ASSEMBLY (#s 377/378, 21234 & 21831) | N/A | ||||
25 | PA15281 | GEAR AXLE | $2.50 | ||||
25 | PA15A218 | WORM GEAR | $3.50 | ||||
25 | PA14A890 | PULL-MOR TIRE | $2.95 | ||||
25 | XA11473 | INSULATED WHEEL | $7.99 | ||||
25 | PA11447 | WORM GEAR | $9.99 | ||||
25 | PA11343@ | SOLID WHEEL | $4.95 | ||||
25 | PA10006 | GEAR AXLE | $2.50 | ||||
25 | N/A | TRUCK CHASSIS & WHEEL ASSEMBLY (#s 371, 375GM/AF & 375/374) | N/A | ||||
25 | N/A | PULL-MOR WHEEL | N/A | ||||
25 | N/A | SOLID WHEEL | N/A | ||||
25 | N/A | PULL-MOR WHEEL | N/A | ||||
26 | PA13034 | FIELD CLAMP (#s 372, 375/374, 377/378, 21234 & 21831) | $5.00 | ||||
26 | XA11457 | FIELD CLAMP ASSEMBLY (#s 371 & 375GM/AF) | $3.00 | ||||
26A | S165 | SET SCREW (#s 372, 375/374, 377/378, 21234 & 21831) | $0.25 | ||||
26A | S0 | SET SCREW (#s 371 & 375GM/AF) | $0.95 | 20 | $10.00 | ||
27 | XA13A037 | YOKE ASSEMBLY (#s 372, 375/374, 377/378, 21234 & 21831) | $7.50 | ||||
28 | S406 | SCREW (#s 372, 375/374, 377/378, 21234 & 21831) | $0.50 | ||||
28 | S230 | SCREW (#s 371 & 375GM/AF) | $0.25 | ||||
30 | XA12A047@ | KNUCKLE COUPLER | $4.95 | ||||
31 | PA12355A | LEAF SPRING | $1.25 | ||||
32 | S3A71 | COUPLER SCREW (#s 371, 375GM/AF & 375/374) | $1.99 | ||||
33 | PA12A586 | COLLECTOR FRAME | $2.75 | ||||
33 | PA12A586 | COLLECTOR FRAME | $2.75 | ||||
33 | PA11677A | PICKUP SHOE | $4.95 | ||||
33 | PA11677A | PICKUP SHOE | $4.95 | ||||
33 | PA11533 | SPRING | $2.50 | ||||
33 | PA11533 | SPRING | $2.50 | ||||
33 | N/A | TRUCK SIDE & COLLECTOR ASSEMBLY (#s 371, 375GM/AF & 375/374) | N/A | ||||
33 | N/A | TRUCK SIDE & COLLECTOR ASSEMBLY (#s 372, 377/378, 21234 & 21831) | N/A | ||||
34 | S249 | SCREW | $1.25 | ||||
35 | PA15A446 | CAM | $1.25 | ||||
35 | PA15226 | PLAIN AXLE | $1.50 | ||||
35 | PA15226 | PLAIN AXLE | $1.50 | ||||
35 | PA15225 | GEAR AXLE | $3.50 | ||||
35 | XA11598 | WHEEL & CHASSIS ASSEMBLY (#s 371, 372, 375 GM/AF, & 375/374) | $29.99 | ||||
35 | XA11473 | INSULATED WHEEL | $7.99 | ||||
35 | PA11343@ | SOLID WHEEL | $4.95 | ||||
35 | PA10005 | PLAIN AXLE | $2.50 | ||||
35 | N/A | WHEEL & CHASSIS ASSEMBLY (#s 377/378 & 21831) | N/A | ||||
35 | N/A | SOLID WHEEL | N/A | ||||
35 | XA14870 | INSULATED WHEEL | N/A | ||||
35 | N/A | WHEEL & CHASSIS ASSEMBLY (# 21234) | N/A | ||||
35 | N/A | SOLID WHEEL | N/A | ||||
35 | XA14870 | INSULATED WHEEL | N/A | ||||
36 | PA11518 | HEADLIGHT LENS | $1.75 | ||||
36 | PA11512 | HORN | $3.99 | ||||
36 | N/A | BODY ASSEMBLY(# 374 DUMMY) | N/A | ||||
36 | N/A | BODY ASSEMBLY(# 378 DUMMY) | N/A | ||||
36 | N/A | HANDRAIL | N/A | ||||
37 | PA15226 | PLAIN AXLE | $1.50 | ||||
37 | XA14A931 | WHEEL & CHASSIS ASSEMBLY (# 378 DUMMY) | $19.95 | ||||
37 | XA11596A | WHEEL & CHASSIS ASSEMBLY (# 374 DUMMY) | $24.99 | ||||
37 | XA11473 | INSULATED WHEEL | $7.99 | ||||
37 | PA11343@ | SOLID WHEEL | $4.95 | ||||
37 | PA10005 | PLAIN AXLE | $2.50 | ||||
37 | N/A | SOLID WHEEL | N/A | ||||
37 | XA14870 | INSULATED WHEEL | N/A | ||||
38 | PA12A586 | COLLECTOR FRAME | $2.75 | ||||
38 | PA11677A | PICKUP SHOE | $4.95 | ||||
38 | PA11533 | SPRING | $2.50 | ||||
38 | N/A | TRUCK SIDE & BOTTOM PLATE ASSEMBLY(# 374 DUMMY) | N/A | ||||
38 | N/A | TRUCK SIDE & COLLECTOR ASSEMBLY (# 378 DUMMY) | N/A | ||||
39 | N/A | RESISTOR | N/A | ||||
40 | N/A | DIESEL SOUND GENERATOR | N/A | ||||
41 | PA10209 | BUSHING | $1.25 | 25 | $20.00 | ||
42 | S171 | SCREW | $0.95 | 20 | $10.00 | ||
42 | N/A | SPEAKER BRACKET | N/A | ||||
43 | PA14A914 | CONDENSER | $3.50 | 10 | $20.00 | ||
44 | N/A | SCREW | N/A | ||||
46 | N/A | LOCKWASHER | N/A | ||||
47 | N25 | NUT | $0.25 | ||||
48 | N/A | BELL & BRACKET ASSEMBLY | N/A | ||||
49 | N/A | TENSION SPRING | N/A | ||||
50 | N/A | PIN | N/A | ||||
51 | N/A | SPRING & BRACKET ASSEMBLY | N/A |
