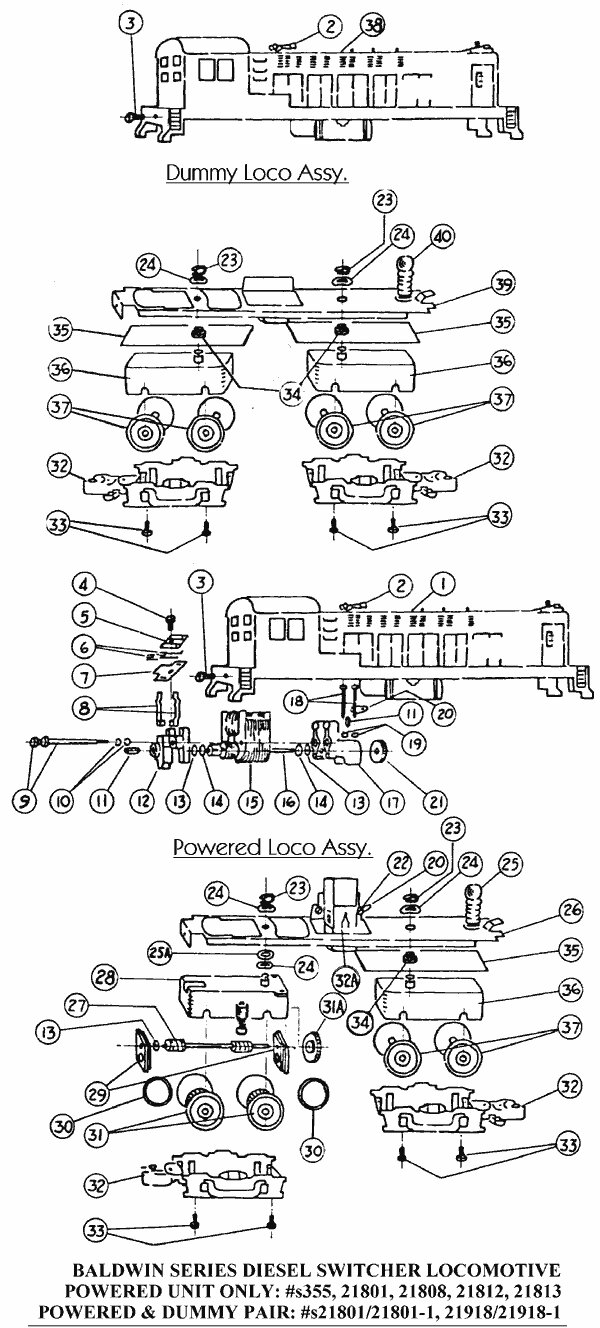

Parts for American Flyer "Baldwin" Series Switcher Locomotive

Diagram #	Product ID	Description	Price
1	N/A	CAB ASSEMBLY(#s 355, 21801)	N/A
1	N/A	CAB ASSEMBLY(# 21808)	N/A
1	N/A	CAB ASSEMBLY(# (21)812)	N/A
1	N/A	CAB ASSEMBLY(# 21813)	N/A
1	N/A	CAB ASSEMBLY(# 21918)	N/A
1	N/A	HEADLIGHT LENS	N/A
2	N/A	HORN	N/A
3	S230B	SCREW	$0.25
4	N/A	SCREW	N/A
5	N/A	SPRING HOLDER	N/A
6	N/A	BRUSH SPRING (right)	N/A
6	N/A	BRUSH SPRING (left)	N/A
7	N/A	BRUSH MOUNT	N/A
8	PA14A588	BRUSH HOLDER	$0.95
8	PA14A414	BRUSH	$3.99		100	$35.00
10	W57	LOCKWASHER	$0.25
11	PA9522	OIL WICK	$0.95		100	$50.00
12	N/A	BRUSH & BEARING CAP	N/A
13	N/A	WASHER	N/A
14	P325A	FIBRE WASHER	$0.25
15	N/A	FIELD ASSEMBLY	N/A
16	XA14B862	ARMATURE ASSEMBLY	$25.00
17	XA15A777	BEARING & MOUNT ASSEMBLY	$4.99
18	S481	SCREW	$0.95
19	W46	LOCKWASHER	$0.25
20	PA6173	TERMINAL (attached to XA15A777 bearing & mount assembly on #s 21808 & 21813)	$0.25
22	N/A	SCREW (#s 355, 21801, 21812 & 21918)	N/A
24	N/A	SPRING WASHER	N/A
25	PA8999	14v BULB (#s 355, 21801, 21812 & 21918)	$1.00
25A	W7	STEEL WASHER	$0.25
26	N/A	CHASSIS & LAMP SOCKET ASSEMBLY(# 355 & some 21808{ w/ 4-position R.C.})	N/A
26	N/A	CHASSIS & LAMP SOCKET ASSEMBLY	N/A
26	N/A	(#s 21801, some 21808{ w/ 2-position R.C.}, 21812 & 21918)	N/A
26	N/A	LOCOMOTIVE CHASSIS (# 21813)	N/A
27	XA14638	WORM SHAFT & GEAR ASSEMBLY	$7.50
28	P10434	RETAINING RING	$0.95
28	N/A	TRUCK CHASSIS & STUD ASSEMBLY	N/A
28	N/A	COLLECTOR BUTTON	N/A
29	N/A	WORM SHAFT BEARING	N/A
30	PA14A890	PULL-MOR TIRE	$2.95
31	PA15225	GEAR AXLE	$3.50
31	PA15A218	20 TOOTH GEAR	$3.50
31	N/A	PULL-MOR WHEEL, AXLE & GEAR	N/A
31	N/A	PULL-MOR WHEEL ASSEMBLY	N/A
31A	PA14587	LARGE GEAR	$2.50
32	PA12355A	LEAF SPRING	$1.25
32	XA12A047@	KNUCKLE COUPLER	$4.95
32	N/A	TRUCKSIDE & COUPLER ASSEMBLY	N/A
32A	PA15330	SWITCH SLIDE (some # 21808 & # 21813)	$1.50
32A	PA15A200	REVERSE SWITCH (some # 21808 & # 21813)	$1.75
32A	XA10587E	REMOTE CONTROL UNIT (4-position # 355, some 21808)	$44.99
32A	XA9612CRP	TOP FINGER UNIT	$3.99
32A	XA9612BRP	BOTTOM FINGER UNIT	$3.99
32A	N/A	DRUM	N/A
32A	N/A	REMOTE CONTROL UNIT (2-position #s 21801, some 21808, 21812 & 21918)	N/A
32A	N/A	RIVET (some # 21808 & # 21813)	N/A
33	S171	SCREW	$0.95		20	$10.00
34	PA10209	INSULATING BUSHING	$1.25		25	$20.00
35	N/A	INSULATING STRIP	N/A
36	N/A	TRUCK CHASSIS & STUD ASSEMBLY	N/A
36	N/A	TRUCK CHASSIS & STUD ASSEMBLY(# 21918-1 DUMMY ONLY)	N/A
37	PA15226	PLAIN AXLE	$1.50
37	N/A	WHEEL & AXLE ASSEMBLY	N/A
37	N/A	SOLID WHEEL	N/A
37	XA14870	INSULATED WHEEL	N/A
38	N/A	CAB ASSEMBLY (# 21801-1 DUMMY)	N/A
38	N/A	CAB ASSEMBLY (# 21918-1 DUMMY)	N/A
38	N/A	HEADLIGHT LENS	N/A
39	N/A	LOCOMOTIVE CHASSIS(# 21801-1 DUMMY )	N/A
39	N/A	CHASSIS & LAMP SOCKET ASSEMBLY(# 21918-1 DUMMY)	N/A
40	PA8999	14v BULB(# 21918-1 DUMMY ONLY)	$1.00
