| Diagram # | Product ID | Description | Price | ||||
|---|---|---|---|---|---|---|---|

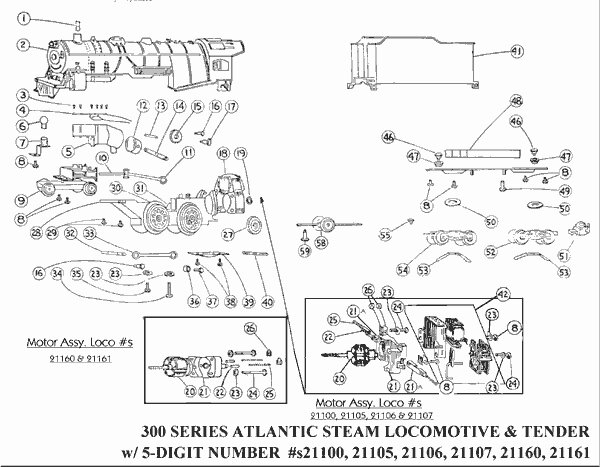

| (#s3-5) | N/A | CHASSIS SMOKE BOX ASSEMBLY (#s 21100, 21105, 21106 & 21107) | N/A | ||||
| 1 | PA12A190 | SMOKE STACK (plastic #s 21100, 21105, 21106 & 21107) | $1.99 | ||||
| 2 | XA11A975DR | BOILER ASSEMBLY (plastic #21100) | $15.00 | 10 | $75.00 | ||
| 3 | XA11A975ER | BOILER ASSEMBLY (plastic #21105) | $15.00 | 10 | $75.00 | ||
| 4 | XA14208A | HEATING ELEMENT & TOP PLATE ASSEMBLY (#s 21100, 21105, 21106 & 21107) | $9.95 | ||||
| 4 | XA11A975JR | BOILER ASSEMBLY (plastic #21106) | $15.00 | 10 | $75.00 | ||
| 5 | XA11A975N | BOILER ASSEMBLY (plastic #21107) | $15.00 | 10 | $75.00 | ||
| 5 | N/A | CHASSIS SMOKE BOX (#s 21100, 21105, 21106 & 21107) | N/A | ||||
| 5 | N/A | SEPARATOR (#s 21100, 21105, 21106 & 21107) | N/A | ||||
| 5 | N/A | CHASSIS WEIGHT ( #21100 no smoke) | N/A | ||||
| 5 | N/A | CHASSIS WEIGHT ( #21160 & 21161) | N/A | ||||
| 6 | XA11A975HR | BOILER ASSEMBLY (plastic #21160) | $15.00 | 10 | $75.00 | ||
| 6 | PA8999 | 14v BULB (#s 21100, 21105, 21106 & 21107) | $1.00 | ||||
| 7 | XA11A975KR | BOILER ASSEMBLY (plastic #21161) | $15.00 | 10 | $75.00 | ||
| 7 | XA10890A | LAMP BRACKET ASSEMBLY (#s 21100, 21105, 21106 & 21107) | $2.50 | ||||
| 8 | PA9286 | MOTOR MOUNT (#s 21100 & 21105) | $1.25 | ||||
| 8 | S230B | SCREW | $0.25 | ||||
| 9 | PA16A052 | LEFT MOTOR MOUNT (#s 21106, 21107, 21160 & 21161) | $1.25 | 50 | $25.00 | ||
| 9 | XA13A085@ | GUIDE & FRONT TRUCK ASSEMBLY | $9.99 | ||||
| 9 | PA10887 | CROSSHEAD GUIDE | $4.50 | ||||
| 9 | PA4367 | RIVET | $0.35 | 50 | $15.00 | ||
| 10 | PA16A053 | RIGHT MOTOR MOUNT (#s 21106, 21107, 21160 & 21161) | $1.25 | 50 | $25.00 | ||
| 10 | PA11099 | CROSSHEAD (ALL BUT 21161) | $1.95 | 20 | $20.00 | ||
| 11 | PA10889 | CONNECTING ROD | $1.95 | 20 | $20.00 | ||
| 11 | N/A | SCREW | N/A | ||||
| 12 | PA10542 | HEADLIGHT LENS (ALL BUT 21161) | $1.25 | 20 | $15.00 | ||
| 12 | PA10518B | PISTON (#s 21100, 21105, 21106 & 21107) | $8.99 | ||||
| 13 | PA10520 | PISTON PIN (#s 21100, 21105, 21106 & 21107) | $0.95 | ||||
| 14 | PA10517 | PISTON LEVER (#s 21100, 21105, 21106 & 21107) | $1.50 | ||||
| 15 | PA10671B | WORM GEAR ( smoke drive #s 21100, 21105, 21106 & 21107) | $3.00 | 10 | $20.00 | ||
| 16 | PA7421 | LEVER SCREW (# 21100) | $2.50 | 25 | $30.00 | ||
| 16 | PA7421 | SIDE ROD SCREW ( #21100 ONLY) | $2.50 | 25 | $30.00 | ||
| 16 | N/A | LEVER SCREW (#s 21105, 21106 & 21107) | N/A | ||||
| 16 | N/A | SIDE ROD SCREW | N/A | ||||
| 18 | N/A | MAGNET ASSEMBLY | N/A | ||||
| 19 | N/A | ARMATURE SPACER (rear) | N/A | ||||
| 20 | XA14B719 | ARMATURE ASSEMBLY (#s 21100, 21105, 21106 & 21107) | $29.50 | ||||
| 20 | XA11077 | ARMATURE ASSEMBLY (#s 21160 & 21161) | $29.95 | ||||
| 20 | W192 | ARMATURE SPACER (front) | $0.50 | ||||
| 21 | PA13A131 | BRUSH TUBE (#s 21100, 21105, 21106 & 21107) | $1.50 | 25 | $25.00 | ||
| 21 | XA9565A | BRUSH BRACKET ASSEMBLY (#s 21160 & 21161) | $14.99 | ||||
| 21 | N/A | BRUSH BRACKET ASSEMBLY (#s 21100, 21105, 21106 & 21107) | N/A | ||||
| 22 | PA13128 | BRUSH (#s 21100, 21105, 21106 & 21107) | $3.95 | 20 | $50.00 | ||
| 23 | PA9603 | BRUSH (#s 21160 & 21161) | $2.95 | ||||
| 23 | PA3769 | WASHER | $0.50 | ||||
| 24 | S33 | SCREW (#s 21100, 21105, 21106 & 21107) | $0.25 | ||||
| 24 | S29 | SCREW (#s 21100, 21105, 21106 & 21107) | $0.50 | ||||
| 24 | N/A | SCREW (#s 21160 & 21161) | N/A | ||||
| 25 | PA13A130 | BRUSH SPRING (#s 21100, 21105, 21106 & 21107) | $1.95 | ||||
| 25 | PA10757A | BRUSH SPRING (#s 21160 & 21161) | $1.99 | ||||
| 26 | PA15A044 | BRUSH TUBE COVER BRACE (#s 21100, 21105, 21106 & 21107) | $0.75 | ||||
| 26 | PA13A129 | BRUSH TUBE COVER (#s 21100, 21105, 21106 & 21107) | $0.50 | ||||
| 26 | PA10754 | BRUSH CAP (#s 21160 & 21161) | $2.99 | ||||
| 27 | PA10672 | WORM GEAR (motor) | $6.99 | ||||
| 28 | PA15286 | CHASSIS (lower) | $1.95 | ||||
| 28 | S5N33 | CHASSIS SCREW | $0.50 | 10 | $2.50 | ||
| 28 | N/A | CHASSIS (# 21100 ONLY) | N/A | ||||
| 28 | N/A | CHASSIS (upper) | N/A | ||||
| 30 | XA14A913A | PULL-MOR WHEEL ASSEMBLY | $3.50 | 10 | $20.00 | ||
| 30 | N/A | PULL-MOR TIRE | N/A | ||||
| 31 | N/A | FLANGED WHEEL & STUD | N/A | ||||
| 31 | N/A | FLANGED WHEEL & STUD (# 21161 ONLY) | N/A | ||||
| 32 | PA15226 | PLAIN AXLE | $1.50 | ||||
| 33 | PA9452 | SIDE ROD | $1.95 | 20 | $20.00 | ||
| 34 | S18 | SCREW (#s 21100, 21105, 21106 & 21107) | $0.25 | ||||
| 34 | N/A | RIVET ( for chassis weight #s 21160 & 21161) | N/A | ||||
| 35 | N/A | N/A | |||||
| 36 | PA7237A | SPACER | $1.25 | ||||
| 37 | S5A37 | ECCENTRIC CRANK SCREW | $1.25 | 20 | $15.00 | ||
| 38 | S230B | SCREW (# 21100 ONLY) | $0.25 | ||||
| 39 | N/A | MOTOR COVER PLATE (# 21100 ONLY) | N/A | ||||
| 40 | PA15281 | WORM GEAR AXLE (# 21100 ONLY) | $2.50 | ||||
| 41 | PA15225 | WORM GEAR AXLE | $3.50 | ||||
| 41 | XA12B078O@ | TENDER BODY ( plastic "BURLINGTON" "AMERICAN FLYER LINES" # 21107) | $12.00 | 10 | $60.00 | ||
| 41 | XA12B078H@ | TENDER BODY ( plastic "READING" "AMERICAN FLYER LINES" ALL #s) | $12.00 | 10 | $60.00 | ||
| 41 | XA12B078E@ | TENDER BODY ( plastic "PRR" "AMERICAN FLYER LINES" # 21107) | $12.00 | 10 | $60.00 | ||
| 42 | PA15A200 | REVERSE SWITCH (# 21160 ONLY) | $1.75 | ||||
| 42 | S230B | SCREW (#s 21160 & 21161) | $0.25 | ||||
| 42 | N/A | REMOTE CONTROL UNIT (2 position ) | N/A | ||||
| 42 | N/A | TERMINAL CLIP (# 21161 ONLY) | N/A | ||||
| 43 | N/A | N/A | |||||
| 44 | N/A | N/A | |||||
| 45 | N/A | N/A | |||||
| 46 | PA10235A@ | TRUCK RIVET | $1.95 | 25 | $35.00 | ||
| 46 | N/A | EYELET (# 21107 ONLY) | N/A | ||||
| 47 | PA10209 | INSULATING BUSHING | $1.25 | 25 | $20.00 | ||
| 47 | N/A | FIBRE SLEEVE (# 21107 ONLY) | N/A | ||||
| 48 | N/A | TENDER WEIGHT | N/A | ||||
| 49 | N/A | RIVET | N/A | ||||
| 50 | W243 | INSULATING WASHER (# 21107 ONLY) | $0.50 | ||||
| 50 | PA8715B | INSULATING WASHER | N/A | ||||
| 51 | PA15215 | KNUCKLE COUPLER (solid # 21161 ONLY) | $5.99 | ||||
| 51 | XA12A047@ | KNUCKLE COUPLER | $4.95 | ||||
| 52 | XA30A050 | REAR TRUCK ASSEMBLY (pikemaster # 21107 ONLY) | $9.95 | ||||
| 52 | PA10238 | AXLE | $0.35 | ||||
| 52 | PA10140C@ | METAL WHEEL | $2.50 | ||||
| 52 | PA9990D | PLASTIC WHEEL | $0.50 | ||||
| 52 | N/A | REAR TRUCK ASSEMBLY | N/A | ||||
| 53 | PA30164 | CONTACT SPRING (for pikemaster truck # 21107 ONLY) | $1.00 | ||||
| 53 | PA10207 | CONTACT SPRING | $2.80 | ||||
| 54 | XA14B811 | FRONT TRUCK ASSEMBLY | N/A | ||||
| 54 | XA30A051 | FRONT TRUCK ASSEMBLY (pikemaster # 21107 ONLY) | N/A | ||||
| 55 | PA4408 | RIVET (for pikemaster truck # 21107 ONLY) | $0.50 | 40 | $10.00 | ||
| 56 | N/A | N/A | |||||
| 57 | N/A | N/A | |||||
| 58 | XA15A784 | DRAWBAR ASSEMBLY | $7.99 | ||||
| 59 | PA4939 | SCREW | $0.95 | 20 | $10.00 | ||
| 60 | N/A | TENDER CHASSIS | N/A | ||||
| 60 | N/A | TENDER CHASSIS (for pikemaster trucks # 21107 ONLY) | N/A |
