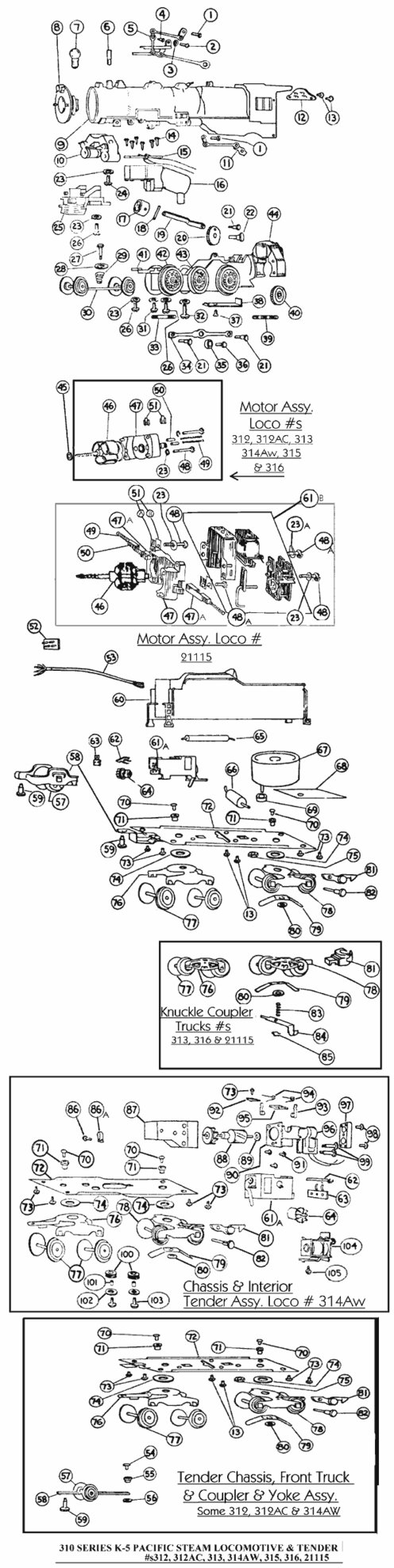

| Diagram # | Product ID | Description | Price | ||||
|---|---|---|---|---|---|---|---|
| (PART #s 86-105: LOCO # 314AW ONLY) | N/A | N/A | |||||
| 1 | PA10598 | LINK STUD | $2.50 | ||||
| 2 | N/A | SCREW | N/A | ||||
| 3 | W46 | WASHER | $0.25 | ||||
| 4 | N/A | SHOULDERED SCREW | N/A | ||||
| 5 | N/A | CROSSHEAD ASSEMBLY (left) | N/A | ||||
| 5 | N/A | CROSSHEAD ASSEMBLY (right) | N/A | ||||
| 6 | PA12A190 | SMOKE STACK (#s 313, 316 & 21115) | $1.99 | ||||
| 6 | PA10536@ | SMOKE STACK (#s 312, 312AC, 314AW & 315) | $4.99 | ||||
| 7 | PA8999 | 14v BULB | $1.00 | ||||
| 8 | PA10542 | HEADLIGHT LENS | $1.25 | 20 | $15.00 | ||
| 8 | XA9504DRP@ | BOILER FRONT ASSEMBLY (# 312AC) | $19.99 | ||||
| 8 | XA9504D@ | BOILER FRONT ASSEMBLY (#312 ) | $19.99 | ||||
| 8 | N/A | BOILER FRONT ASSEMBLY (#s 314AW & 315) | N/A | ||||
| 9 | TK787@ | BOILER TOP HANDRAIL | $3.00 | ||||
| 9 | TK785@ | BOILER-to-PILOT HANDRAIL (right) | $1.25 | ||||
| 9 | PA9579A | MOTOR MOUNT | $2.95 | ||||
| 9 | PA9578@ | DRAWBAR BRACKET | $3.99 | ||||
| 9 | P1247B | HANDRAIL COTTER PIN (black) | $0.25 | ||||
| 9 | N/A | BOILER ASSEMBLY | N/A | ||||
| 10 | N/A | CYLINDER | N/A | ||||
| 11 | XA10447 | ECCENTRIC CRANK ASSEMBLY | $11.99 | ||||
| 12 | XA10662A | JACK PANEL (#s 312, 312AC, 314AW, 315 & 316) | $11.99 | ||||
| 13 | S230B | SCREW (#s 312, 312AC, 314AW, 315 & 316) | $0.25 | ||||
| 13 | N/A | CHASSIS SMOKE BOX ASSEMBLY (#s 313 & 21115) | N/A | ||||
| 13 | N/A | CHASSIS SMOKE BOX ASSEMBLY (#s 312, 312AC, 314AW, 315 & 316) | N/A | ||||
| 15 | XA14208A | HEATING ELEMENT & TOP PLATE ASSY. (#s 313 & 21115) | $9.95 | ||||
| 15 | XA10523 | HEATING ELEMENT & TOP PLATE ASSY. (#s 312, 312AC, 314AW, 315 & 316) | $11.00 | ||||
| 16 | N/A | SEPARATOR (#s 313 & 21115) | N/A | ||||
| 16 | N/A | CHASSIS SMOKE BOX (#s 313 & 21115) | N/A | ||||
| 16 | N/A | CHASSIS SMOKE BOX (#s 312, 312AC, 314AW, 315 & 316) | N/A | ||||
| 17 | PA10518B | PISTON | $8.99 | ||||
| 18 | PA10520 | PISTON PIN | $0.95 | ||||
| 20 | PA10671B | WORM GEAR (smoke drive) | $3.00 | 10 | $20.00 | ||
| 21 | PA7421 | SCREW | $2.50 | 25 | $30.00 | ||
| 23 | PA3769 | WASHER | $0.50 | ||||
| 24 | N/A | FRONT TRUCK & PILOT ASSEMBLY | N/A | ||||
| 24 | N/A | SCREW | N/A | ||||
| 25 | PA9502@ | PILOT | $13.00 | ||||
| 25 | N/A | PILOT HANDRAIL | N/A | ||||
| 26 | S46 | SCREW | $0.95 | 20 | $10.00 | ||
| 27 | PA10707 | FRONT TRUCK STUD | $1.25 | ||||
| 28 | W6 | FRONT TRUCK WASHER | $0.50 | ||||
| 29 | PA8887 | FRONT TRUCK SPRING | $1.50 | ||||
| 30 | XA10012 | FRONT TRUCK | $9.50 | ||||
| 30 | PA9990D | FRONT TRUCK WHEEL ONLY | $0.50 | ||||
| 30 | N/A | AXLE | N/A | ||||
| 31 | S14 | SCREW | $0.25 | ||||
| 32 | N/A | SCREW | N/A | ||||
| 33 | PA15226 | PLAIN AXLE (#s 313 & 21115) | $1.50 | ||||
| 33 | PA10005 | PLAIN AXLE (#s 312, 312AC, 314AW, 315 & 316) | $2.50 | ||||
| 34 | PA9280A | SIDE ROD | $1.50 | ||||
| 35 | PA7237N | PISTON ROD SPACER | $1.75 | ||||
| 38 | PA10017 | GREASE PAN | $3.00 | 10 | $20.00 | ||
| 39 | PA15281 | WORM GEAR AXLE (#s 313 & 21115) | $2.50 | ||||
| 39 | PA10006 | WORM GEAR AXLE (#s 312, 312AC, 314AW, 315 & 316) | $2.50 | ||||
| 40 | PA10672 | WORM GEAR (motor) | $6.99 | ||||
| 41 | N/A | CHASSIS ASSEMBLY | N/A | ||||
| 42 | N/A | FLANGED DRIVE WHEEL | N/A | ||||
| 43 | XA10009B1 | FLANGELESS DRIVE WHEEL w/STUD | $7.99 | 10 | $45.00 | ||
| 43A | N/A | PULL-MOR WHEEL ASSEMBLY | N/A | ||||
| 44 | N/A | FIELD ASSEMBLY (large #s 313, 316 & 21115) | N/A | ||||
| 44 | N/A | FIELD ASSEMBLY (small #s 312, 312AC, 313, 314AW, 315 & 316) | N/A | ||||
| 45 | N/A | ARMATURE SPACER | N/A | ||||
| 46 | XA11077 | ARMATURE ASSEMBLY (small #s 312, 312AC, 313, 314AW, 315 & 316) | $29.95 | ||||
| 46 | N/A | ARMATURE ASSEMBLY (drum type # 21115 ONLY) | N/A | ||||
| 46 | N/A | ARMATURE ASSEMBLY (large #s 313 & 316) | N/A | ||||
| 47 | PA13A131 | BRUSH TUBE | $1.50 | 25 | $25.00 | ||
| 47 | XA9565A | BRUSH BRACKET ASSEMBLY (#s 312, 312AC, 313, 314AW, 315 & 316) | $14.99 | ||||
| 47 | N/A | MOTOR BRUSH MOUNTING PLATE ASSEMBLY ( # 21115 ONLY) | N/A | ||||
| 48 | S33 | SCREW ( # 21115 ONLY) | $0.25 | ||||
| 48 | S29 | SCREW ( # 21115 ONLY) | $0.50 | ||||
| 48 | N/A | SCREW (#s 312, 312AC, 313, 314AW, 315 & 316) | N/A | ||||
| 49 | PA13A130 | BRUSH SPRING ( # 21115 ONLY) | $1.95 | ||||
| 49 | PA10757A | BRUSH SPRING (#s 312, 312AC, 313, 314AW, 315 & 316) | $1.99 | ||||
| 50 | PA13128 | BRUSH ( # 21115 ONLY) | $3.95 | 20 | $50.00 | ||
| 50 | PA9603 | BRUSH (#s 312, 312AC, 313, 314AW, 315 & 316) | $2.95 | ||||
| 51 | PA15A044 | BRUSH TUBE COVER BRACE ( # 21115 ONLY) | $0.75 | ||||
| 51 | PA13A129 | BRUSH TUBE COVER ( # 21115 ONLY) | $0.50 | ||||
| 51 | PA10754 | BRUSH CAP (#s 312, 312AC, 313, 314AW, 315 & 316) | $2.99 | ||||
| 52 | XA10663@ | MALE PLUG (#s 312, 312AC, 314AW, 315 & 316) | $5.99 | ||||
| 53 | PA10511 | 4 CONDUCTOR CABLE (#s 312, 312AC, 314AW, 315 & 316) | $6.00 | ||||
| 53 | N/A | WIRE LEAD (# 313ONLY) | N/A | ||||
| 53 | N/A | WIRE LEAD (# 316ONLY) | N/A | ||||
| 53 | N/A | 4 CONDUCTOR CABLE (plastic #s 313 & 316) | N/A | ||||
| 54 | PA10751 | STUD (some #s312, 312AC & 314AW) | $1.25 | ||||
| 56 | PA1067A | WASHER(some #s312, 312AC & 314AW) | $0.25 | ||||
| 57 | PA10019 | REAR TRUCK WHEEL ONLY | $1.99 | 10 | $10.00 | ||
| 58 | XA15A261@ | TRAILING TRUCK ASSEMBLY (# 21115 ONLY) | $25.00 | ||||
| 58 | PA14839A | COUPLER STRAP (# 21115 ONLY) | $5.00 | ||||
| 58 | XA10749 | COUPLER & YOKE ASSEMBLY (some #s312, 312AC & 314AW) | $11.99 | ||||
| 58 | XA10020@ | TRAILING TRUCK ASSEMBLY (#s 312, 312AC, 313, 314AW, 315 & 316) | $25.00 | ||||
| 58 | PA4362 | RIVET (#s 312, 312AC, 313, 314AW, 315 & 316) | $0.50 | ||||
| 59 | PA4939 | STUD | $0.95 | 20 | $10.00 | ||
| 60 | N/A | GRAB IRON (ladder top) | N/A | ||||
| 60 | N/A | TENDER BODY ASSEMBLY (plastic # 21115 ONLY) | N/A | ||||
| 60 | N/A | TENDER BODY ASSEMBLY (die-cast w/whistle holes # 314AW ONLY) | N/A | ||||
| 60 | N/A | TENDER BODY ASSEMBLY (die-cast) | N/A | ||||
| 61 | XA10587E | REMOTE CONTROL UNIT (4-position) | $44.99 | ||||
| 61 | N/A | REMOTE CONTROL UNIT (2-position # 21115 ONLY) | N/A | ||||
| 62 | XA9612CRP | TOP FINGER UNIT | $3.99 | ||||
| 63 | XA9612BRP | BOTTOM FINGER UNIT | $3.99 | ||||
| 64 | N/A | DRUM | N/A | ||||
| 65 | PA11685 | RESISTOR (# 315 ONLY) | $2.50 | ||||
| 66 | PA11A991 | CONDENSER (#s 315 & 316) | $3.50 | 10 | $20.00 | ||
| 67 | N/A | SCREW (# 316 ONLY) | N/A | ||||
| 67 | N/A | SPEAKER BRACKET (# 316 ONLY) | N/A | ||||
| 67 | XA11B831@ | SPEAKER (# 316) | N/A | ||||
| 67 | XA11710@ | SPEAKER (# 315) | N/A | ||||
| 68 | N/A | RECEIVER INSULATION (# 315 ONLY) | N/A | ||||
| 69 | N/A | RUBBER WASHER (# 315 ONLY) | N/A | ||||
| 70 | PA10235A@ | TRUCK RIVET | $1.95 | 25 | $35.00 | ||
| 71 | PA10209 | INSULATING BUSHING | $1.25 | 25 | $20.00 | ||
| 72 | N/A | TENDER CHASSIS (# 21115 ONLY) | N/A | ||||
| 72 | N/A | TENDER CHASSIS & WIRE RETAINER ASSEMBLY | N/A | ||||
| 72 | N/A | WEIGHT (# 21115 ONLY) | N/A | ||||
| 72 | N/A | RIVET (# 21115 ONLY) | N/A | ||||
| 73 | S230B | SCREW (# 21115 ONLY) | $0.25 | ||||
| 73 | S0 | SCREW | $0.95 | 20 | $10.00 | ||
| 74 | PA8715B | INSULATING WASHER | N/A | ||||
| 75 | PA5601 | RIVET (# 316 ONLY) | $0.25 | ||||
| 75 | N/A | NUT (# 315 ONLY) | N/A | ||||
| 76 | PA12A586 | PICK-UP FRAME (# 315 ONLY) | $2.75 | ||||
| 76 | XA12A516 | FRONT TRUCK ASSEMBLY ( #s 313 & 316) | $9.50 | ||||
| 76 | N/A | FRONT TRUCK ASSEMBLY ( #s312, 312AC & 314AW) | N/A | ||||
| 76 | N/A | FRONT TRUCK ASSEMBLY w/PICK-UP (# 315 ONLY) | N/A | ||||
| 76 | XA14B811 | FRONT TRUCK ASSEMBLY ( # 21115) | N/A | ||||
| 77 | XA10238B | WHEEL & AXLE ASSEMBLY | $4.00 | ||||
| 77 | PA10238 | AXLE | $0.35 | ||||
| 77 | PA10140C@ | METAL WHEEL | $2.50 | ||||
| 77 | PA9990 | PLASTIC WHEEL | $0.50 | ||||
| 78 | PA12A586 | PICK-UP FRAME (# 315 ONLY) | $2.75 | ||||
| 78 | N/A | REAR TRUCK ASSEMBLY ( #s312, 312AC & 314AW) | N/A | ||||
| 78 | N/A | REAR TRUCK ASSEMBLY w/PICK-UP (# 315 ONLY) | N/A | ||||
| 78 | N/A | REAR TRUCK ASSEMBLY ( #s 313, 316 & 21115) | N/A | ||||
| 79 | PA10207 | CONTACT SPRING | $2.80 | ||||
| 80 | N/A | WASHER | N/A | ||||
| 81 | PA10692@ | COUPLER WEIGHT ONLY ( #s312, 312AC, 314AW & 315 ) | $0.75 | ||||
| 81 | N/A | KNUCKLE COUPLER ( #s 313, 316 & 21115) | N/A | ||||
| 82 | PA10467 | COUPLER PIN ( #s312, 312AC, 314AW & 315 ) | $0.95 | ||||
| 83 | PA11956 | PICK-UP SPRING (#s 313, 316 & 21115) | $0.95 | ||||
| 83 | PA11533 | PICK-UP SPRING (# 315 ONLY) | $2.50 | ||||
| 84 | PA11A936 | TENDER PICK-UP (#s 313, 316 & 21115) | $9.99 | ||||
| 84 | PA11677A | PICK-UP SHOE (# 315 ONLY) | $4.95 | ||||
| 85 | PA11A944 | HAIR PIN COTTER (#s 313, 316 & 21115) | $0.75 | ||||
| 86 | S243 | SCREW | $0.25 | ||||
| 86A | N/A | WIRE CLIP | N/A | ||||
| 87 | N/A | WHISTLE HOUSING ASSEMBLY | N/A | ||||
| 88 | N/A | ARMATURE & FAN ASSEMBLY | N/A | ||||
| 89 | N/A | ARMATURE SPACER | N/A | ||||
| 90 | N/A | MOUNTING PLATE | N/A | ||||
| 91 | S243 | SCREW | $0.25 | ||||
| 92 | N/A | SPRING HOLDER | N/A | ||||
| 93 | N/A | BRUSH HOLDER ASSEMBLY | N/A | ||||
| 94 | N/A | SPRING | N/A | ||||
| 94 | N/A | SPRING | N/A | ||||
| 95 | N/A | FIBRE STRIP | N/A | ||||
| 96 | N/A | FIELD ASSEMBLY | N/A | ||||
| 97 | N/A | FRONT END BEARING PLATE | N/A | ||||
| 98 | S284 | SCREW | $0.25 | 100 | $10.00 | ||
| 99 | N/A | SHOULDERED SCREW | N/A | ||||
| 100 | PA4356 | RUBBER GROMMET | $0.50 | ||||
| 101 | N/A | GROMMET BUSHING | N/A | ||||
| 102 | W67 | WASHER | $0.50 | ||||
| 103 | S266 | SCREW | $0.50 | ||||
| 104 | N/A | WHISTLE RELAY ASSEMBLY | N/A | ||||
| 105 | N/A | SCREW | N/A |
