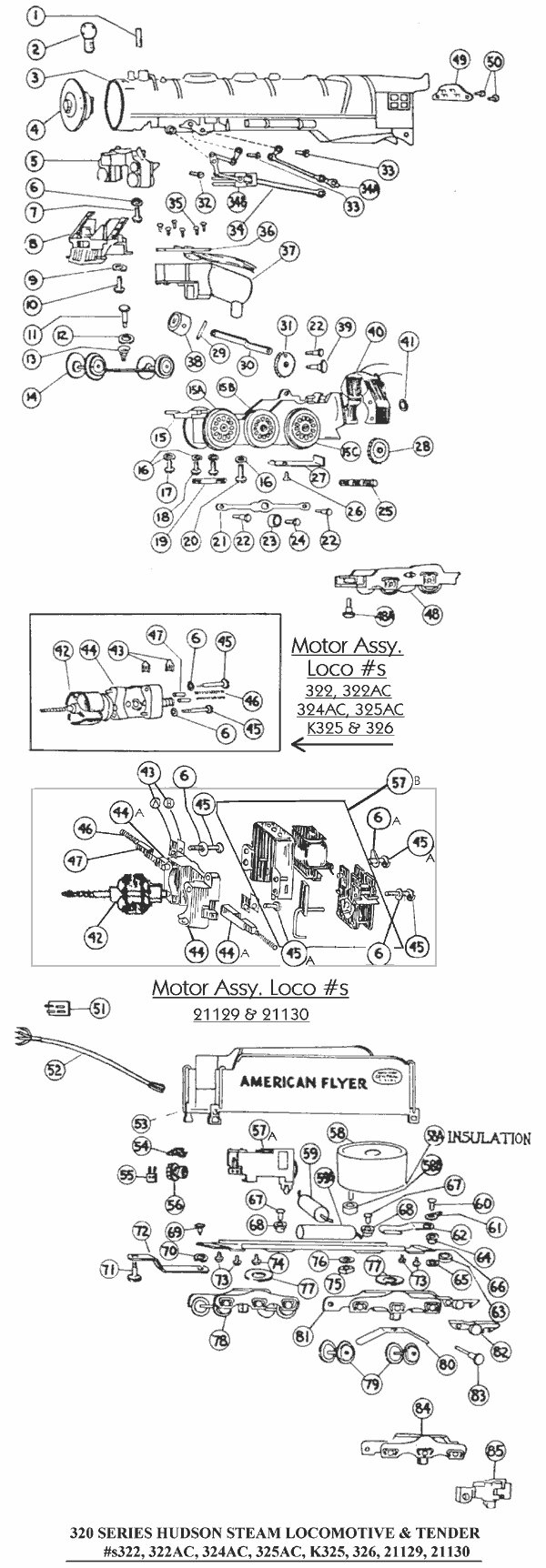

| Diagram # | Product ID | Description | Price | ||||
|---|---|---|---|---|---|---|---|
| 1 | PA12A190 | SMOKE STACK (#sK325, 326, 21129 & 21130) | $1.99 | ||||
| 1 | PA10536@ | SMOKE STACK (#s 322, 322AC, 324AC & 325AC) | $4.99 | ||||
| 2 | PA8999 | 14v BULB | $1.00 | ||||
| 3 | PA9579A | MOTOR MOUNT | $2.95 | ||||
| 3 | PA9578@ | DRAWBAR BRACKET | $3.99 | ||||
| 3 | PA9294L | MAIN BOILER HANDRAIL (left) | $4.99 | 10 | $25.00 | ||
| 3 | PA9294R | MAIN BOILER HANDRAIL (right) | $4.99 | 10 | $25.00 | ||
| 3 | P1247B | HANDRAIL COTTER PIN (black) | $0.25 | ||||
| 3 | N/A | BOILER ASSEMBLY | N/A | ||||
| 4 | PA10542 | HEADLIGHT LENS | $1.25 | 20 | $15.00 | ||
| 4 | XA9216B@ | BOILER FRONT ASSEMBLY | $19.50 | ||||
| 4 | XA9216A@ | BOILER FRONT ASSEMBLY (# 322 1948-49 ONLY) | $12.00 | ||||
| 5 | PA10056 | CYLINDER & STEAMCHEST | $25.00 | ||||
| 6 | PA3769 | LOCKWASHER | $0.50 | ||||
| 7 | S47 | SCREW | $0.25 | ||||
| 8 | PA9245@ | PILOT | $24.99 | ||||
| 9 | PA3769 | LOCKWASHER | $0.50 | ||||
| 10 | N/A | SCREW | N/A | ||||
| 11 | PA10707 | FRONT TRUCK STUD | $1.25 | ||||
| 12 | W6 | FRONT TRUCK WASHER | $0.50 | ||||
| 13 | PA8887 | FRONT TRUCK SPRING | $1.50 | ||||
| 14 | XA10012 | FRONT TRUCK | $9.50 | ||||
| 14 | PA9990D | FRONT TRUCK WHEEL ONLY | $0.50 | ||||
| 14 | N/A | AXLE | N/A | ||||
| 15 | PA15231 | CHASSIS ASSEMBLY (lower #s 21129 LATE & 21130) | $5.00 | ||||
| 15 | S5N33 | CHASSIS SCREW (#s 21129 LATE & 21130) | $0.50 | 10 | $2.50 | ||
| 15 | N/A | CHASSIS ASSEMBLY | N/A | ||||
| 15 | N/A | CHASSIS ASSEMBLY (upper #s 21129 LATE & 21130) | N/A | ||||
| 15A | XA14A602 | FLANGED DRIVE WHEEL (plastic w/rim #s 21129 LATE & 21130) | $4.50 | 10 | $30.00 | ||
| 15A | N/A | FLANGED DRIVE WHEEL | N/A | ||||
| 15B | XA14598 | FLANGELESS DRIVE WHEEL W/STUD (plastic w/rim #s 21129 LATE & 21130) | $3.00 | ||||
| 15B | XA10009B1 | FLANGELESS DRIVE WHEEL W/STUD | $7.99 | 10 | $45.00 | ||
| 15C | XA14A925 | PULL-MOR WHEEL ASSEMBLY (plastic w/rim #s 21129 LATE & 21130) | $3.00 | ||||
| 15C | PA14869 | PULL-MOR TIRE | $2.00 | 24 | $24.00 | ||
| 15C | N/A | PULL-MOR WHEEL ASSEMBLY (#s 326 & 21129 EARLY) | N/A | ||||
| 16 | PA3769 | LOCKWASHER | $0.50 | ||||
| 17 | S14 | SCREW | $0.25 | ||||
| 18 | S46 | SCREW | $0.95 | 20 | $10.00 | ||
| 19 | PA15226 | PLAIN AXLE (#s 21129 & 21130) | $1.50 | ||||
| 19 | PA10005 | PLAIN AXLE | $2.50 | ||||
| 20 | S16-C | SCREW | $0.25 | ||||
| 21 | PA9280A | SIDE ROD | $1.50 | ||||
| 22 | PA7421 | SCREW | $2.50 | 25 | $30.00 | ||
| 22 | N/A | PISTON ROD SCREW (#s 21129 LATE & 21130) | N/A | ||||
| 22 | N/A | SMOKE LEVER SCREW (#s 21129 LATE & 21130) | N/A | ||||
| 23 | PA7237N | PISTON ROD SPACER | $1.75 | ||||
| 25 | PA15225 | WORM GEAR AXLE ( #s 21129 LATE & 21130) | $3.50 | ||||
| 25 | PA10006 | WORM GEAR AXLE | $2.50 | ||||
| 25 | S5A37 | ECCENTRIC CRANK SCREW ( #s 21129 LATE & 21130) | $1.25 | 20 | $15.00 | ||
| 27 | PA10017 | GREASE PAN ( NOT USED #s 21129 LATE & 21130) | $3.00 | 10 | $20.00 | ||
| 28 | PA10672 | WORM GEAR (motor) | $6.99 | ||||
| 29 | PA10520 | PISTON PIN | $0.95 | ||||
| 31 | PA10671B | WORM GEAR (smoke drive) | $3.00 | 10 | $20.00 | ||
| 32 | PA9288 | SHOULDERED SCREW | $0.95 | ||||
| 33 | PA10598 | LINK STUD | $2.50 | ||||
| 34 | XA10597R | CROSSHEAD ASSEMBLY (right) | $14.00 | ||||
| 34 | XA10597L | CROSSHEAD ASSEMBLY (left) | $14.00 | ||||
| 34A | XA10447AX | ECCENTRIC CRANK ASSEMBLY | $3.99 | ||||
| 34B | PA10595R | CROSSHEAD GUIDE (right) | $3.00 | ||||
| 34B | PA10595L | CROSSHEAD GUIDE (left) | $3.00 | ||||
| 34B | N/A | CHASSIS SMOKE BOX ASSEMBLY | N/A | ||||
| 34B | N/A | CHASSIS SMOKE BOX ASSEMBLY ( #s 21129 & 21130) | N/A | ||||
| 36 | XA14208A | HEATING ELEMENT & TOP PLATE ASSY. ( #s 21129 & 21130) | $9.95 | ||||
| 36 | XA10523 | HEATING ELEMENT & TOP PLATE ASSY. | $11.00 | ||||
| 37 | N/A | CHASSIS SMOKE BOX | N/A | ||||
| 37 | N/A | CHASSIS SMOKE BOX ( #s 21129 & 21130) | N/A | ||||
| 37 | N/A | SEPARATOR ( #s 21129 & 21130) | N/A | ||||
| 38 | PA10518B | PISTON | $8.99 | ||||
| 40 | N/A | MAGNET ASSEMBLY (small #s 322, 322AC, 324AC, 325AC, K325 & 326) | N/A | ||||
| 40 | N/A | MAGNET ASSEMBLY (large #s 326, 21129 & 21130) | N/A | ||||
| 41 | N/A | ARMATURE SPACER | N/A | ||||
| 42 | XA11077 | ARMATURE ASSEMBLY (small #s 322, 322AC, 324AC, 325AC, K325 & 326) | $29.95 | ||||
| 42 | W192 | ARMATURE SPACER (rear #s 21129 & 21130) | $0.50 | ||||
| 42 | N/A | ARMATURE ASSEMBLY (large #326 ONLY) | N/A | ||||
| 42 | N/A | ARMATURE ASSEMBLY (drum type #s 21129 & 21130) | N/A | ||||
| 43 | PA15A044 | BRUSH TUBE COVER BRACE ( #s 21129 & 21130) | $0.75 | ||||
| 43 | PA13A129 | BRUSH TUBE COVER ( #s 21129 & 21130) | $0.50 | ||||
| 43 | PA10754 | BRUSH CAP | $2.99 | ||||
| 44 | PA13A131 | BRUSH TUBE ( #s 21129 & 21130) | $1.50 | 25 | $25.00 | ||
| 44 | XA9565A | BRUSH BRACKET ASSEMBLY (#s 21129 & 21130) | $14.99 | ||||
| 44 | N/A | MOTOR BRUSH MOUNTING PLATE ASSEMBLY ( #s 21129 & 21130) | N/A | ||||
| 45 | S5N15 | SCREW ( #s 21129 & 21130) | $0.50 | ||||
| 45 | S514 | SCREW ( #s 21129 & 21130) | $0.50 | ||||
| 45 | S3A78 | SCREW (# 326 ONLY) | $0.50 | ||||
| 45 | N/A | SCREW ( #s 322, 322AC, 324AC, 325AC, K325 & 326) | N/A | ||||
| 46 | PA13A130 | BRUSH SPRING ( #s 21129 & 21130) | $1.95 | ||||
| 46 | PA10757A | BRUSH SPRING | $1.99 | ||||
| 47 | PA13128 | BRUSH ( #s 21129 & 21130) | $3.95 | 20 | $50.00 | ||
| 47 | PA9603 | BRUSH | $0.95 | ||||
| 48 | PA10019 | REAR TRUCK WHEEL ONLY(large) | $1.99 | 10 | $10.00 | ||
| 48 | XA10002 | TRAILING TRUCK ASSEMBLY | $39.99 | ||||
| 48 | PA9990 | REAR TRUCK WHEEL ONLY(small) | $0.50 | ||||
| 48A | PA4939 | STUD (#s 21129 & 21130) | $0.95 | 20 | $10.00 | ||
| 49 | XA10662A | JACK PANEL (#s 322, 322AC, 324AC, 325AC, K325 & 326) | $11.99 | ||||
| 50 | S230B | SCREW (#s 322, 322AC, 324AC, 325AC, K325 & 326) | $0.25 | ||||
| 51 | XA10663@ | MALE PLUG (#s 322, 322AC, 324AC, 325AC, K325 & 326) | $5.99 | ||||
| 52 | PA10511A | 4 CONDUCTOR CABLE (#s 322, 322AC, 324AC, 325AC, K325 & 326) | $6.00 | ||||
| 52 | N/A | 4 CONDUCTOR CABLE (plastic some # 326) | N/A | ||||
| 52 | N/A | 7.5" WIRE LEAD (# 326 ONLY) | N/A | ||||
| 53 | N/A | TENDER BODY ASSEMBLY (die-cast) | N/A | ||||
| 53 | N/A | 14D952 TENDER BODY ASSEMBLY (plastic # 21129) | N/A | ||||
| 53 | N/A | TENDER BODY ASSEMBLY (plastic # 21130) | N/A | ||||
| 53 | N/A | TENDER WEIGHT (#s 21129 & 21130) | N/A | ||||
| 53 | N/A | RIVET (#s 21129 & 21130) | N/A | ||||
| 53 | N/A | LEFT REAR & RIGHT FRONT TENDER HANDRAIL | N/A | ||||
| 53 | N/A | TENDER DECK HANDRAIL | N/A | ||||
| 53 | N/A | GRAB IRON (ladder top) | N/A | ||||
| 54 | XA9612CRP | TOP FINGER UNIT | $3.99 | ||||
| 55 | XA9612BRP | BOTTOM FINGER UNIT | $3.99 | ||||
| 56 | N/A | DRUM | N/A | ||||
| 57 | XA10587E | REMOTE CONTROL UNIT (4-position) | $44.99 | ||||
| 57 | N/A | REMOTE CONTROL UNIT (2-position #s 21129 & 21130) | N/A | ||||
| 58 | N/A | SPEAKER (# 324AC) | N/A | ||||
| 58A | N/A | RECEIVER INSULATION (#s 325AC, K325 & 326) | N/A | ||||
| 58B | N/A | RUBBER WASHER (#s 325AC, K325 & 326) | N/A | ||||
| 59 | PA14A914 | CAPACITOR (# 21129) | $3.50 | 10 | $20.00 | ||
| 59 | PA11A991 | CONDENSER (#s 325AC, K325 & 326) | $3.50 | 10 | $20.00 | ||
| 59 | PA11365 | CONDENSER (#s 324AC) | $3.95 | ||||
| 59 | XA11710@ | SPEAKER (#s 325AC, K325 & 326) | N/A | ||||
| 59A | PA11685 | RESISTOR (#s 325AC, K325 & 326) | $2.50 | ||||
| 60 | PA4408 | RIVET (#s 322, 322AC, 324AC, 325AC & K325) | $0.50 | 40 | $10.00 | ||
| 60 | XA14A127@ | SPEAKER (# 21129) | N/A | ||||
| 61 | PA6173 | SOLDER TERMINAL (#s 322, 322AC, 324AC, 325AC & K325) | $0.25 | ||||
| 61 | N/A | BRACKET (# 21129) | N/A | ||||
| 62 | S171 | SCREW (# 21129) | $0.95 | 20 | $10.00 | ||
| 62 | N/A | CONTACT STRIP (#s 322, 322AC, 324AC, 325AC & K325) | N/A | ||||
| 63 | PA1310 | WASHER (#s 322, 322AC, 324AC, 325AC & K325) | $0.50 | ||||
| 63 | S230B | SCREW (# 21129) | $0.25 | ||||
| 65 | N/A | WASHER (#s 322, 322AC, 324AC, 325AC & K325) | N/A | ||||
| 66 | N/A | TENDER CHASSIS & WIRE RETAINER ASSEMBLY | N/A | ||||
| 66 | N/A | TENDER CHASSIS (#s 21129 & 21130) | N/A | ||||
| 67 | PA10235A@ | TRUCK RIVET | $1.95 | 25 | $35.00 | ||
| 68 | PA10209 | INSULATING BUSHING | $1.25 | 25 | $20.00 | ||
| 69 | PA4366 | TUBULAR RIVET ( NOT USED #s 21129 & 21130) | $0.75 | ||||
| 71 | PA4939 | STUD ( NOT USED #s 21129 & 21130) | $0.95 | 20 | $10.00 | ||
| 72 | N/A | COUPLER (#s 21129 & 21130 EARLY) | N/A | ||||
| 72 | N/A | COUPLER (# 21130 LATE ) | N/A | ||||
| 73 | S230B | SCREW (#s 21129 & 21130) | $0.25 | ||||
| 73 | S0 | SCREW | $0.95 | 20 | $10.00 | ||
| 74 | S230 | SCREW (NOT USED #s 21129 & 21130) | $0.25 | ||||
| 75 | S50A | SCREW (# 324AC) | $0.25 | ||||
| 75 | N/A | NUT (#s 325AC, K325 & 326) | N/A | ||||
| 76 | PA3769 | WASHER (#s 325AC, K325 & 326) | $0.50 | ||||
| 76 | W29 | WASHER (# 324AC) | $0.25 | ||||
| 77 | PA8715B | INSULATING WASHER | N/A | ||||
| 78 | PA4408 | RIVET (# 21130 LATE ) | $0.50 | 40 | $10.00 | ||
| 78 | N/A | FRONT TRUCK ASSEMBLY W/WHEELS (#s 322 & 322AC) | N/A | ||||
| 78 | N/A | FRONT TRUCK ASSEMBLY W/WHEELS (#s 324AC, 325AC, K325 & 326) | N/A | ||||
| 78 | N/A | FRONT TRUCK ASSEMBLY W/WHEELS (#s 21129 & 21130 EARLY) | N/A | ||||
| 78 | N/A | FRONT TRUCK ASSEMBLY W/WHEELS (# 21130 LATE ) | N/A | ||||
| 79 | XA10238B | WHEEL & AXLE ASSEMBLY | $4.00 | ||||
| 79 | XA10238A | WHEEL & AXLE ASSEMBLY (center axle #s 322, 322AC & some 326) | $1.50 | ||||
| 79 | PA10238 | AXLE | $0.35 | ||||
| 79 | PA10238 | AXLE | $0.35 | ||||
| 79 | PA10140S@ | METAL WHEEL | $2.50 | ||||
| 79 | PA9990 | PLASTIC WHEEL | $0.50 | ||||
| 79 | PA9990 | PLASTIC WHEEL | $0.50 | ||||
| 80 | PA10241 | CONTACT SPRING | $3.50 | ||||
| 81 | PA12A586 | COLLECTOR FRAME ( #s 325AC) | $2.75 | ||||
| 81 | PA11677A | COLLECTOR SHOE ( # 325AC) | $4.95 | ||||
| 81 | PA11533 | COLLECTOR SPRING ( # 325AC) | $2.50 | ||||
| 81 | N/A | REAR TRUCK ASSEMBLY w/WHEELS ( #s 322, 322AC, 324AC & 325AC) | N/A | ||||
| 82 | PA10692A@ | COUPLER WEIGHT ONLY (brass # 322) | $1.00 | ||||
| 82 | PA10692@ | COUPLER WEIGHT ONLY (black #s 322AC, 324AC & 325AC) | $0.75 | ||||
| 83 | PA10467 | COUPLER PIN ( #s 322, 322AC, 324AC & 325AC) | $0.95 | ||||
| 84 | PA12A586 | COLLECTOR FRAME ( #s K325, 326, 21139 & 21130) | $2.75 | ||||
| 84 | PA11677A | COLLECTOR SHOE ( #s K325, 326, 21139 & 21130) | $4.95 | ||||
| 84 | PA11533 | COLLECTOR SPRING ( #s K325, 326, 21139 & 21130) | $2.50 | ||||
| 84 | N/A | REAR TRUCK ASSEMBLY w/WHEELS ( #s K325, 326, 21139 & 21130) | N/A | ||||
| 85 | XA12A047@ | KNUCKLE COUPLER ( #s K325, 326, 21139 & 21130) | $4.95 |
